Cluster Lid D

Cluster Lid D: Removal and Installation

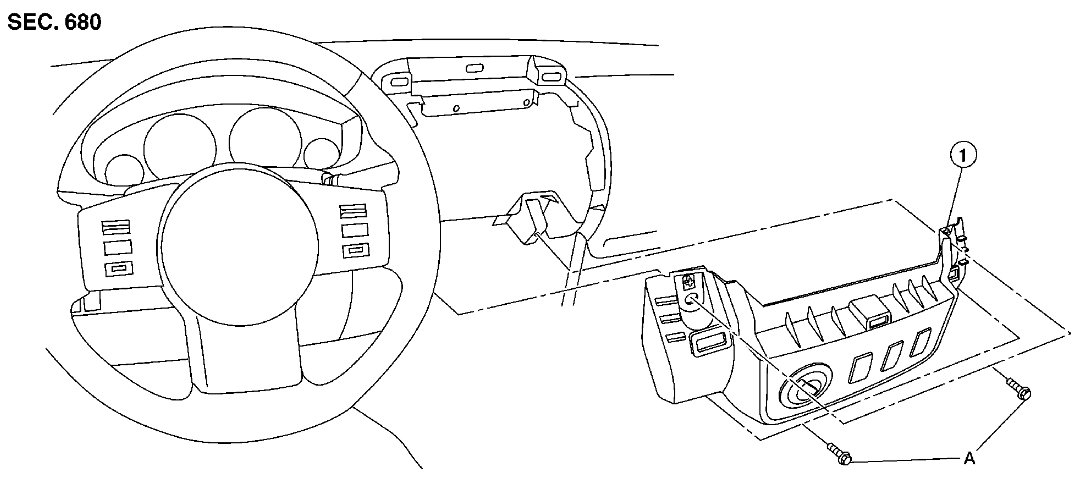

Type 1

Removal

1) Remove center console. Refer to [Center Console: Removal and Installation] Center Console.
2) Remove instrument lower panel LH. Refer to [Instrument Lower Panel LH: Removal and Installation] Instrument Lower Panel LH.
3) Remove instrument lower panel RH and lower glove box assembly. Refer to [Instrument Lower Panel RH and Glove Box: Removal and Installation] Instrument Lower Panel RH and Glove Box.
4) Remove cluster lid C. Refer to [Cluster Lid C: Removal and Installation] Cluster Lid C.
5) Remove the cluster lid D screws.
6) Disconnect the harness connectors, then remove cluster lid D.

Installation

Installation is in the reverse order of removal.

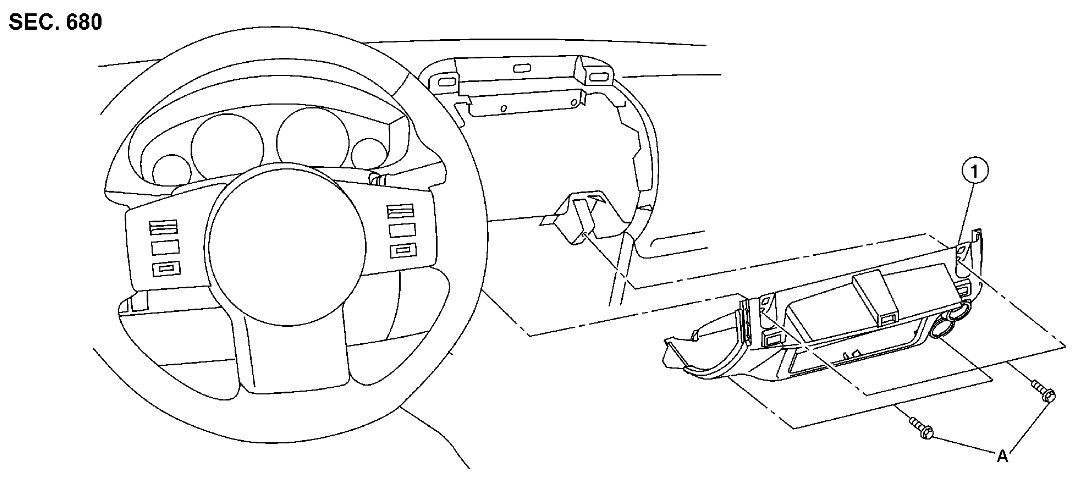

Type 2
