Cluster Lid C

Cluster Lid C: Removal and Installation

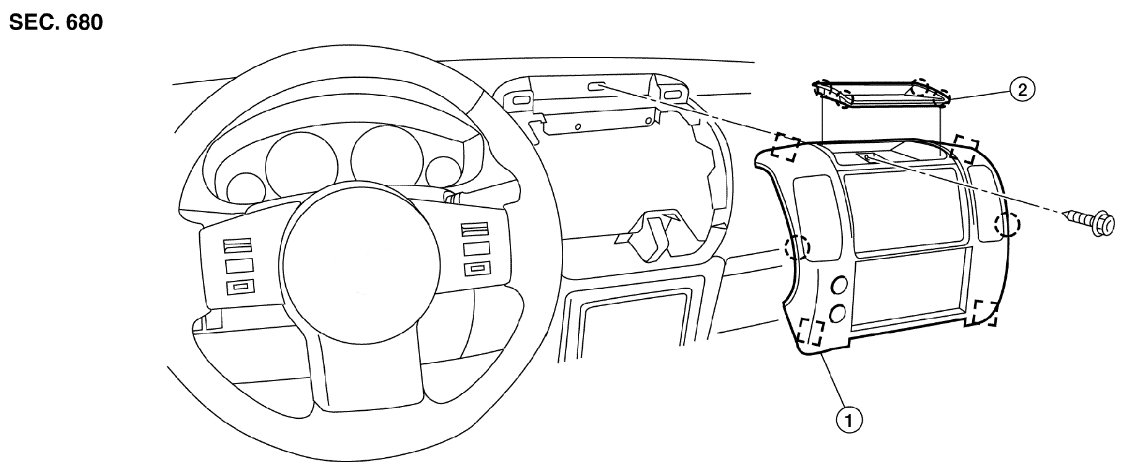

Type 1










Removal

1) Disconnect the negative battery terminal.
2) Using a suitable tool, release and remove the storage tray.

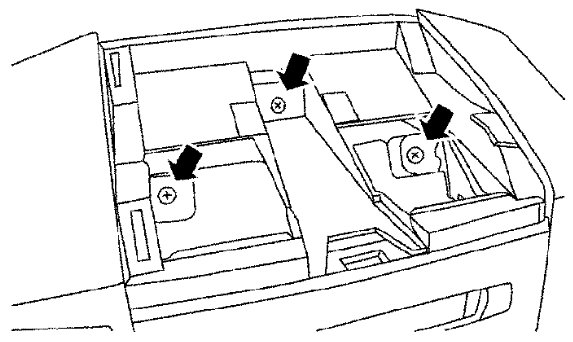

3) Remove the cluster lid C screws, then release the clips.





4) Disconnect harness connectors, then remove cluster lid C.

Installation

Installation is in the reverse order of removal.

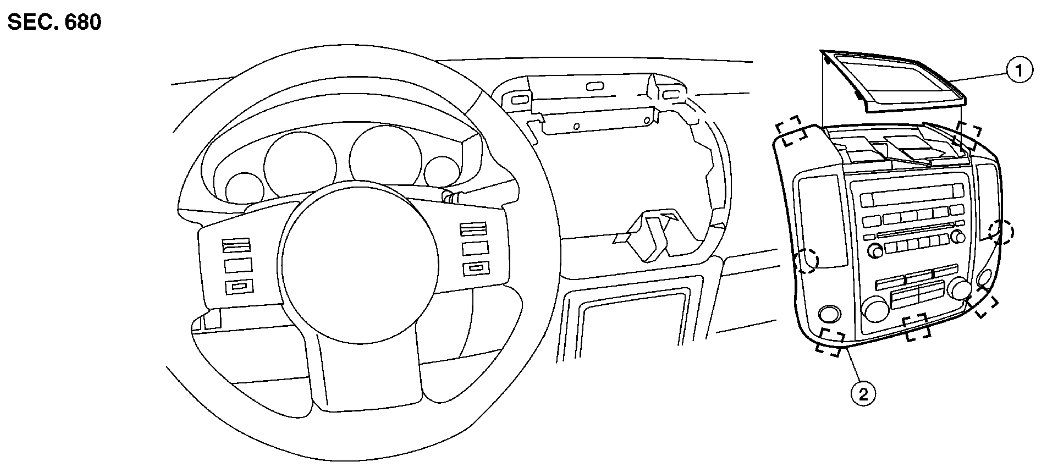

Type 2










Removal

1) Disconnect the negative battery terminal.
2) Using a suitable tool, release and remove storage tray.
3) Remove the cluster lid C screw, then release the clips.
4) Disconnect harness connectors, then remove cluster lid C.

Installation

Installation is in the reverse order of removal.
