M/T Finisher

M/T Finisher: Removal and Installation

Removal

1) Pull up to release the clips, then remove cup holder finisher.
2) Rotate shift selector handle counterclockwise, then remove.

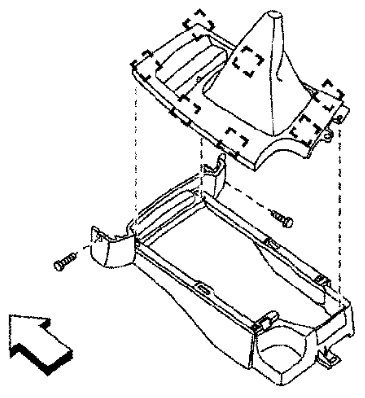

3) Pull up to release clips, then remove the M/T finisher.





: Vehicle front

: Metal clip

Installation

Installation is in the reverse order of removal.

- Install shift selector handle according to the following.

- Apply cement to threads of control lever assembly.
- Tighten shift knob until increased tension is felt. Then align shift knob to the position as shown within one turn.






CAUTION:
Do not adjust shift knob by loosening it.
