A/T Finisher




A/T Finisher: Removal and Installation

Removal

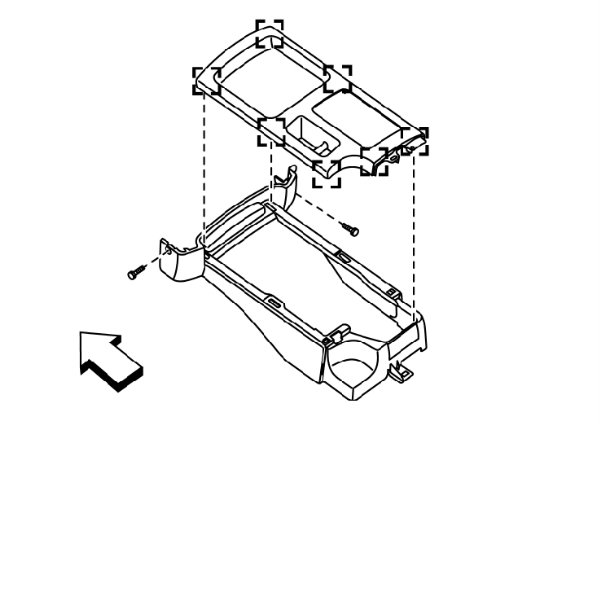

1) Pull up to release clips, then remove cup holder finisher.
2) Pull up to release clips, then remove the A/T finisher.





: Front of vehicle

: Metal clip

Installation

Installation is in the reverse order of removal.
