Carpet: Service and Repair

Floor Trim: Removal and Installation

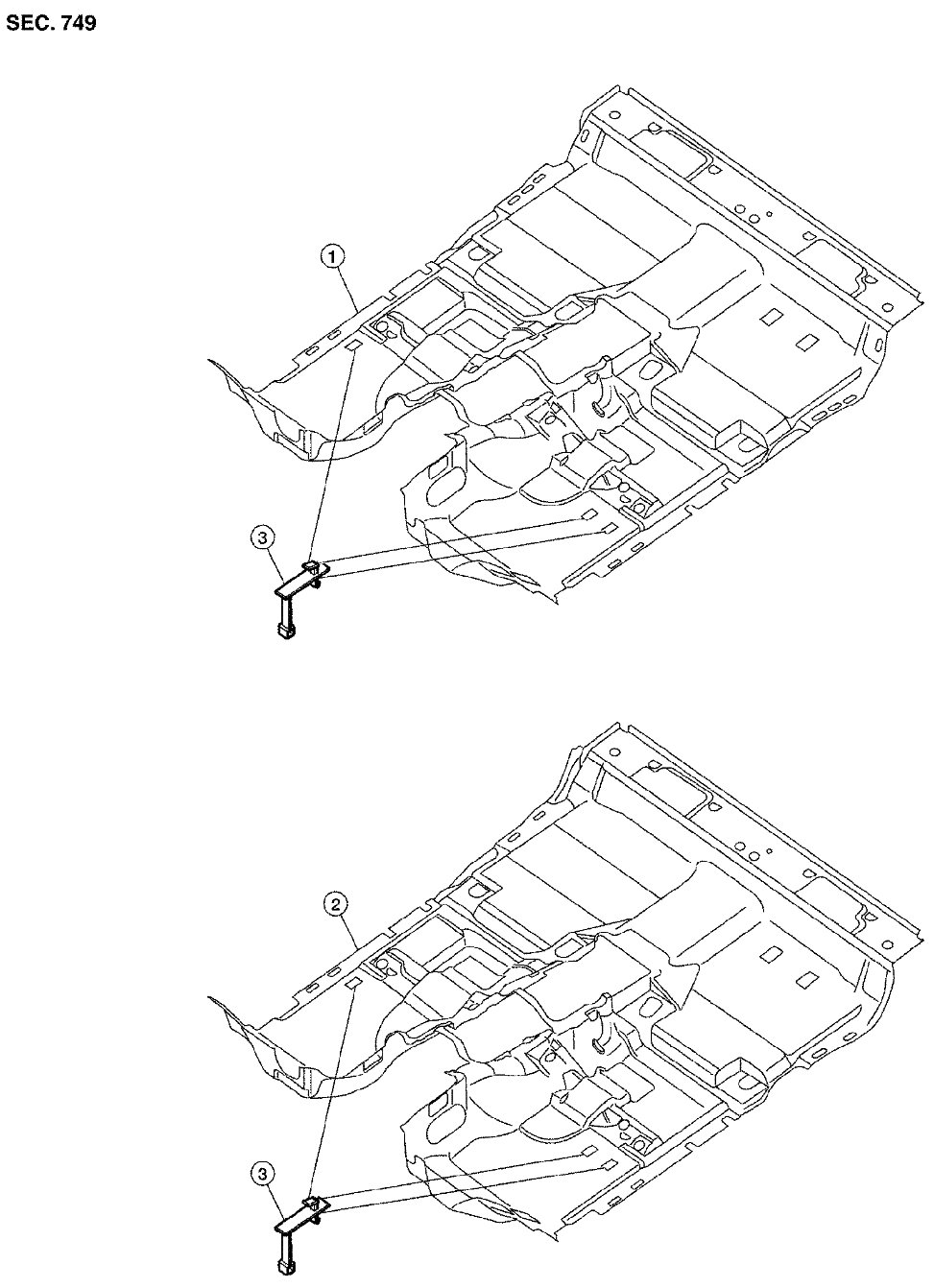

Crew Cab and King Cab Floor Carpet

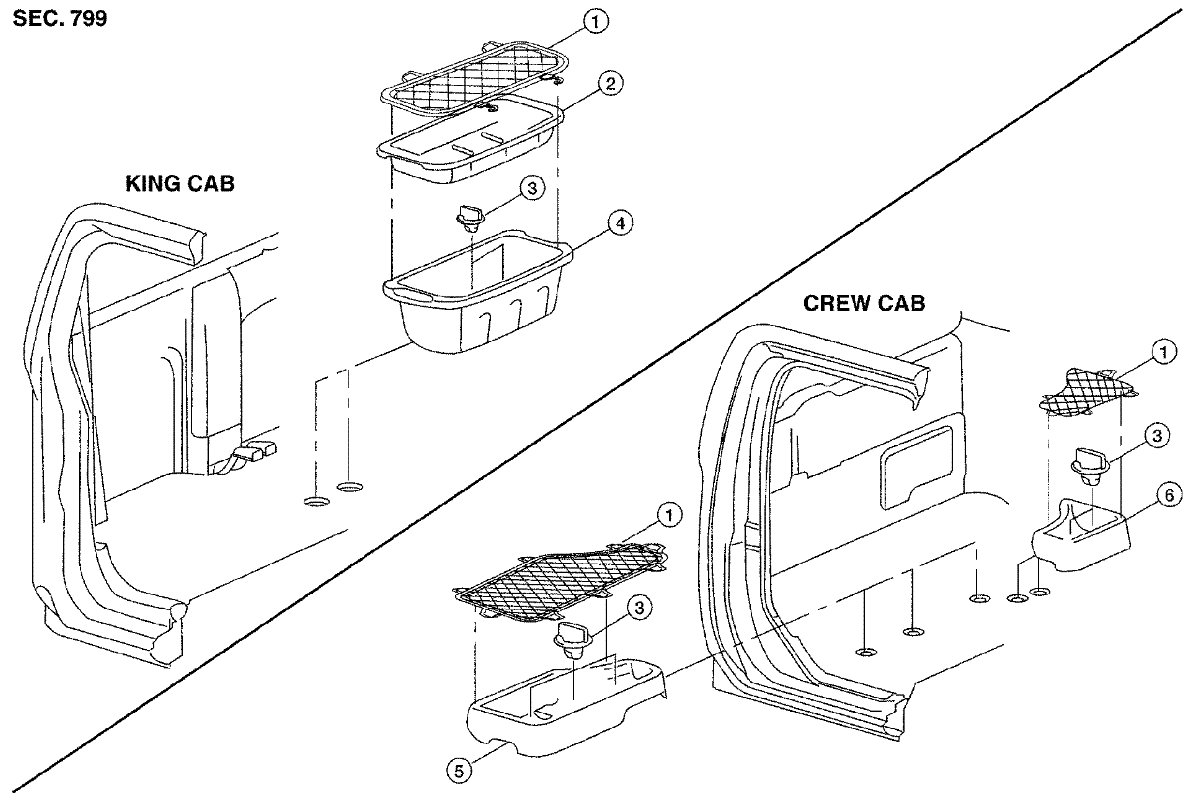

Storage Box










Removal

1) Remove front seats. Refer to [Front Seat: Removal and Installation] Front Seat Removal and Installation.
2) Remove rear seats. Refer to [Rear Seat: Removal and Installation] Rear Seat.
3) Remove storage boxes (if equipped).
4) Remove lower seat belt anchors (crew cab only). Refer to [LATCH (Lower Anchors and Tether for Children) System: Removal and Installation] LATCH (Lower Anchors and Tether for Children) System Removal and Installation.
5) Remove lower body side trim panels. Refer to [Body Side Trim: Removal and Installation] Body Side Trim Removal and Installation.
6) Remove center console. Refer to [Center Console: Removal and Installation] Center Console.
7) Remove floor mat hooks.
8) Remove carpet.

Installation

Installation is in the reverse order of removal.
