Front Tweeter




Front Tweeter: Removal and Installation

Removal

CAUTION:

Use a suitable tool to prevent damage to the front tweeter speaker grille trim and the instrument panel.

1) Remove the front tweeter grille.

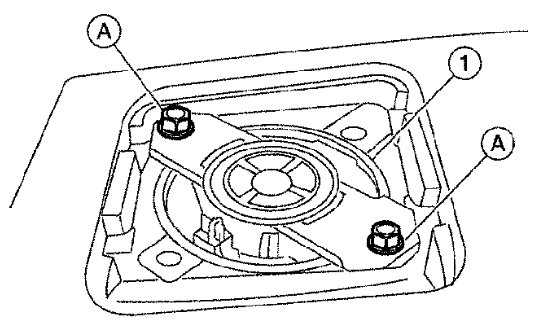

2) Remove the front tweeter screws (A).





3) Pull out the front tweeter speaker (1) and disconnect front tweeter connector, then remove the front tweeter speaker (1).

Installation

Installation is in the reverse order of removal.
