Amplifier: Service and Repair

Audio AMP: Removal and Installation

Removal

NOTE:

Do not remove the RH front seat from the vehicle.

1) Remove the RH front seat bolts, disconnect the RH front seat electrical connectors. Refer to [Front Seat: Removal and Installation] Front Seat Removal and Installation.

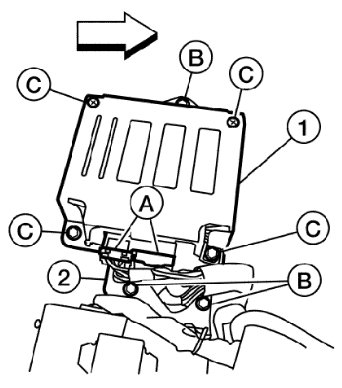

2) Tilt the RH front seat back to access the audio amp. (1) and remove the audio amp. kick shield screws (C).





:Vehicle front
3) Disconnect the audio amp. connectors (A) and remove the audio amp. (1) from the bracket (2).
4) Remove the audio amp. bracket screws (B) and remove bracket (2).

Installation

Installation is in the reverse order of removal.
