Premium Audio (Crew Cab)

Bluetooth Control Unit: Removal and Installation










Removal

NOTE:

Do not remove the RH front seat from the vehicle.

1) Remove the RH front seat bolts, disconnect the RH front seat electrical connectors. Refer to [Front Seat: Removal and Installation] Front Seat Removal and Installation.
2) Tilt the RH front seat back to access the bluetooth control unit.

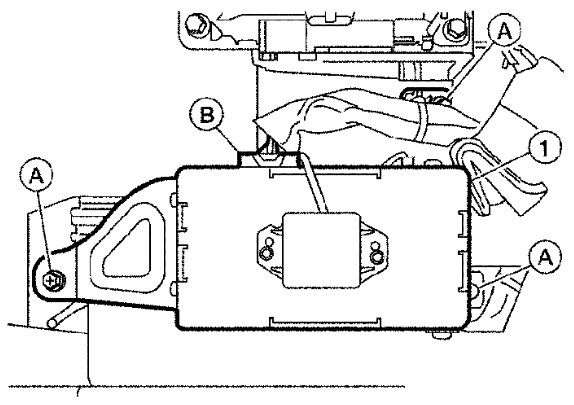

3) Disconnect the Bluetooth control unit harness connector (B).





4) Remove the Bluetooth control unit screws (A), then remove the Bluetooth control unit assembly (1).

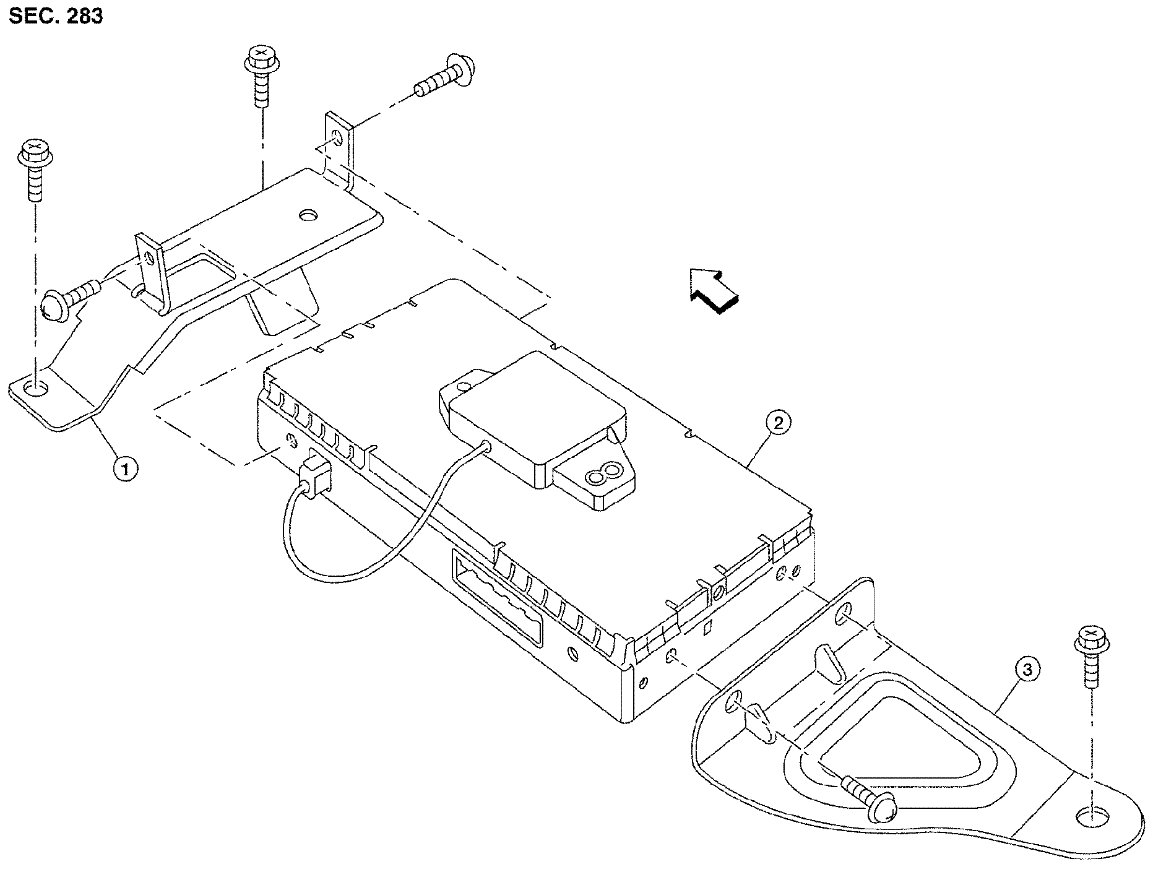

5) Remove the Bluetooth control unit bracket screws and remove the Bluetooth control unit front and rear brackets.

Installation

Installation is in the reverse order of removal.
