Premium Audio (Crew Cab)

Microphone: Removal and Installation

Removal

1) Remove the roof console. Refer to [Headlining: Removal and Installation] Service and Repair.

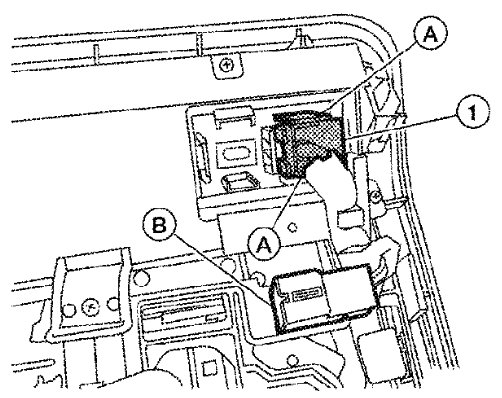

2) Detach the Bluetooth microphone (1) from the front console finisher tabs (A).





3) Detach the Bluetooth microphone connector (B) and remove the Bluetooth microphone (1).

Installation

Installation is in the reverse order of removal.
