Contact Coil Cable Assembly Removal and Installation: Installation

Reference: CONTACT COIL CABLE ASSEMBLY INSPECTION

Reference: CENTERING CONTACT COIL CABLE ASSEMBLY

1. Check to make sure that vehicle's front tires are set at straight-ahead position and then ignition switch is at LOCK position.
2. For ESP® model, install steering angle sensor to contact coil cable assembly referring to STEERING ANGLE SENSOR REMOVAL AND INSTALLATION (ESP® MODEL) .
3. Install contact coil cable assembly with steering angle sensor (ESP® model) to steering column securely.
   NOTE: New contact coil cable assembly is supplied with contact coil set and held at its center position with a lock pin (1). Remove this lock pin after installing contact coil cable assembly to steering column.
   Fig 1: Identifying Lock Pin

   Courtesy of SUZUKI OF AMERICA CORP.
4. Install steering column upper cover (1) and lower cover (2).
   CAUTION: Lead wires will be damaged if they get pinched when you install the covers. Make sure that there are no wires caught between the covers before securing the covers.

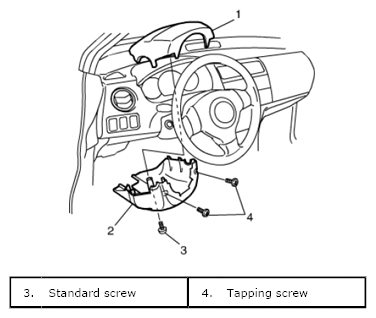

   Fig 2: Identifying Steering Column Upper Cover And Lower Cover

   Courtesy of SUZUKI OF AMERICA CORP.
5. Install steering wheel to steering column referring to STEERING WHEEL REMOVAL AND INSTALLATION .
6. Connect negative (-) cable to battery.
