Emission-Related Hoses and Tubes Inspection

Check each vacuum hose and tube for secure connection.

Also, check that it is free from any bend or damage.

Correct faulty condition, if any.

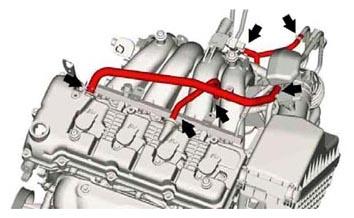

Fig 1: Locating Emission-Related Hoses And Tubes
G06866830Courtesy of SUZUKI OF AMERICA CORP.
