Clutch Fluid Inspection

  1. Check clutch system for evidence of fluid leakage. Repair leaky point if any.
  2. Check reservoir for fluid level referring to CLUTCH FLUID LEVEL INSPECTION .

    If fluid is lower than minimum level (1) of reservoir, refill reservoir with specified brake fluid indicated on reservoir cap (2).

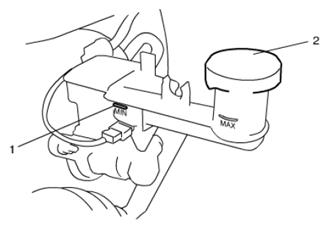

    Fig 1: Inspecting Clutch Fluid
    G06866842Courtesy of SUZUKI OF AMERICA CORP.
