Oil Pressure Check

NOTE: Prior to checking oil pressure, check the following.

Oil level in oil pan
If oil level is too low, add oil up to full level mark on oil level gauge. See ENGINE OIL AND FILTER CHANGE .
Oil quality
If oil is discolored or deteriorated, change it. See ENGINE OIL AND FILTER CHANGE .
Oil leaks
If leak is found, repair it.

For M/T model, place gear shift lever in "Neutral" and apply parking brake.
For CVT model, place select lever in "P" and apply parking brake.
Disconnect OCV connector.
Remove engine cover. See AIR CLEANER ASSEMBLY REMOVAL AND INSTALLATION .
Disconnect oil pressure switch connector (1).
Remove oil pressure switch (2) from timing chain cover.

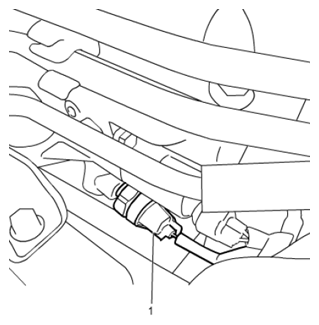

Fig 1: Removing Oil Pressure Switch From Timing Chain Cover
Courtesy of SUZUKI OF AMERICA CORP.
Install special tools to threaded hole where oil pressure switch was removed.
Special Tool
1. 09915-77311
2. 09915-78211

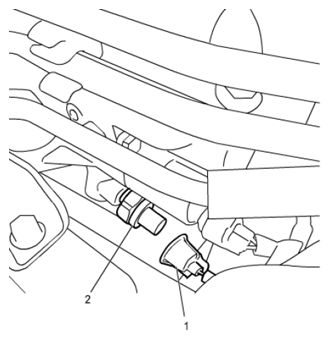

Fig 2: Installing Special Tools To Threaded Hole Of Oil Pressure Switch
Courtesy of SUZUKI OF AMERICA CORP.
Start engine and warm engine up to normal operating temperature.
After warming up, raise engine speed to 4,000 RPM and measure oil pressure.
Oil pressure specification

More than 300 - 500 kPa (3.1 - 5.1 kgf/cm ² , 43.5 - 72.5 psi) at 4,000 RPM .
After checking oil pressure, stop engine and remove special tools.
Apply sealant to thread portion of oil pressure switch (1), and then tighten to specified torque.
CAUTION: Do not apply sealant to oil pressure switch hole.

"A": Thread lock cement 99000-32110 (Thread Lock Cement Super 1322)

Tightening torque

Oil pressure switch (a): 13 N.m (1.3 kg-m, 9.5 lbf-ft)

Fig 3: Applying Sealant To Thread Portion Of Oil Pressure Switch
Courtesy of SUZUKI OF AMERICA CORP.
Connect oil pressure switch lead wire (1).

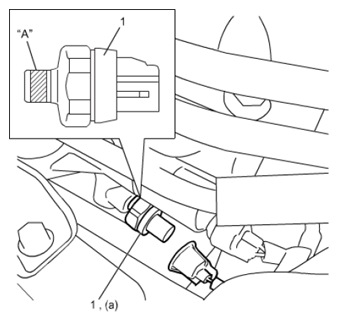

Fig 4: Oil Pressure Switch Lead Wire
Courtesy of SUZUKI OF AMERICA CORP.
Start engine and check oil pressure switch for oil leakage. If oil leakage is found, repair it.
Check DTC referring to DTC CHECK . If any DTC is displayed, clear it referring to DTC CLEARANCE .
