Combination Meter Circuit Diagram: Notes

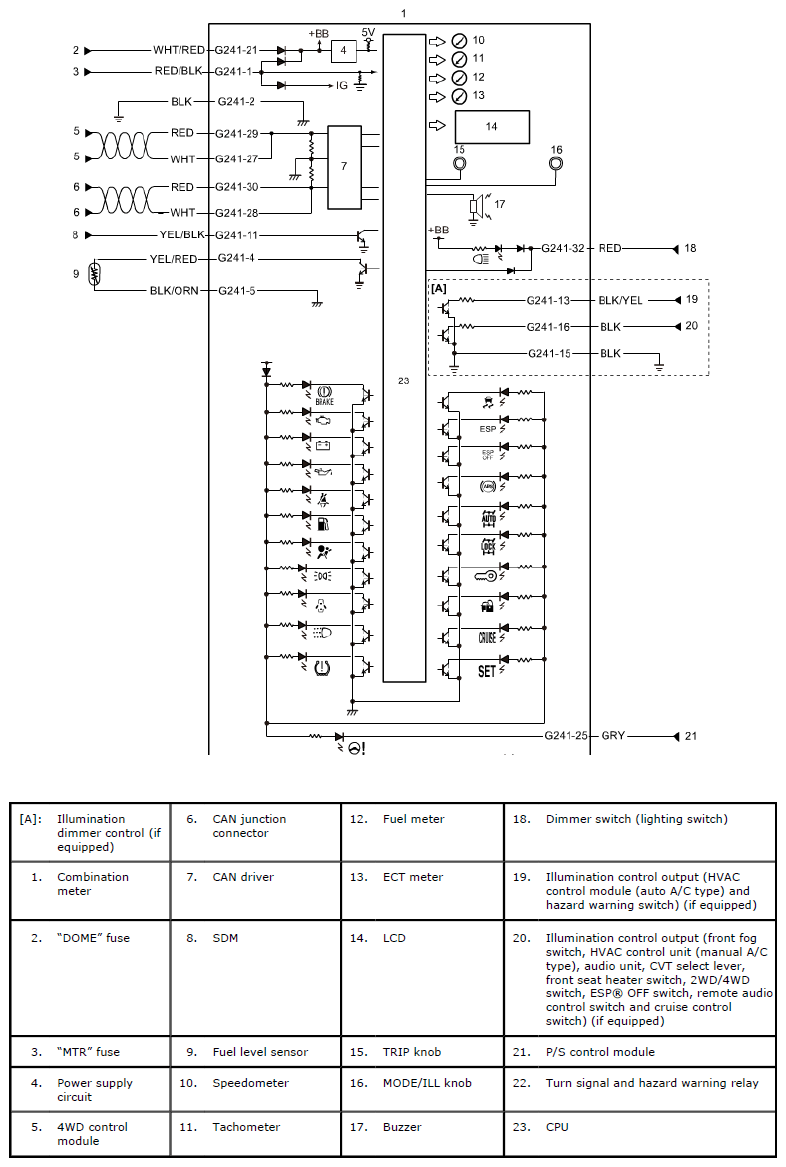

Fig 1: Combination Meter Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
