Cruise Control System Input/Output Diagram

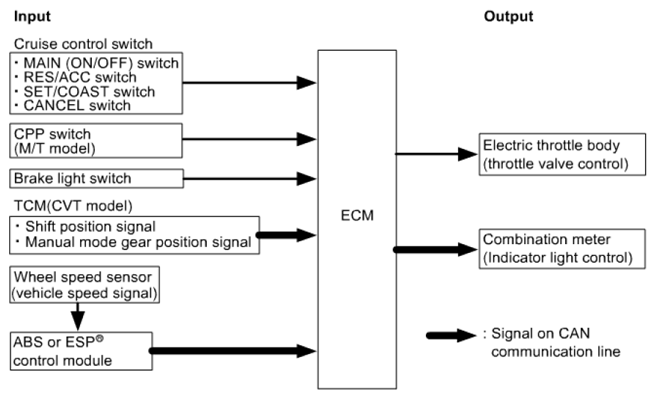

Fig 1: Cruise Control System Input/Output Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
