Rear Door Window Components

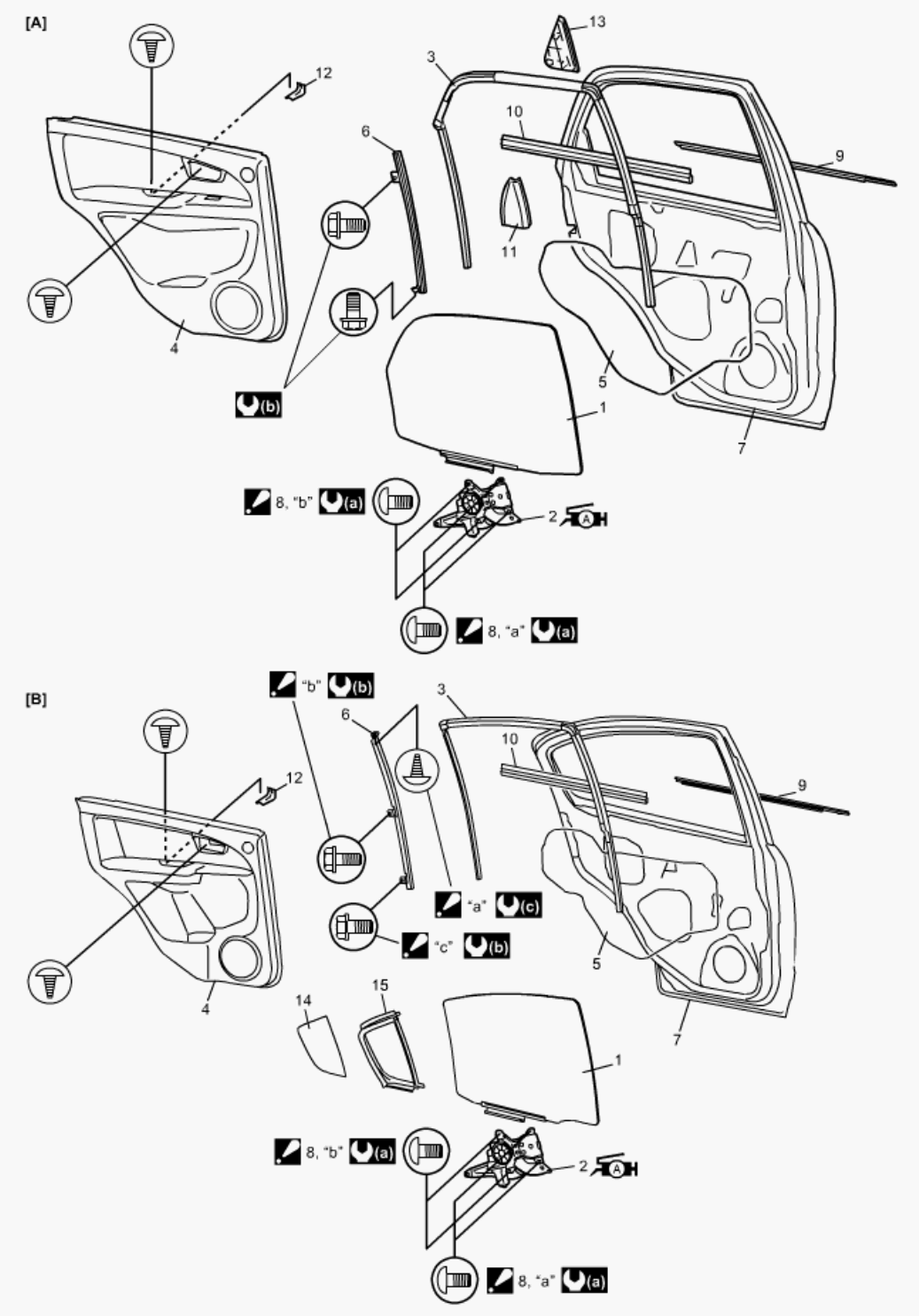

Fig 1: Identifying Rear Door Window Components (1 of 2)
G00520606Courtesy of SUZUKI OF AMERICA CORP.

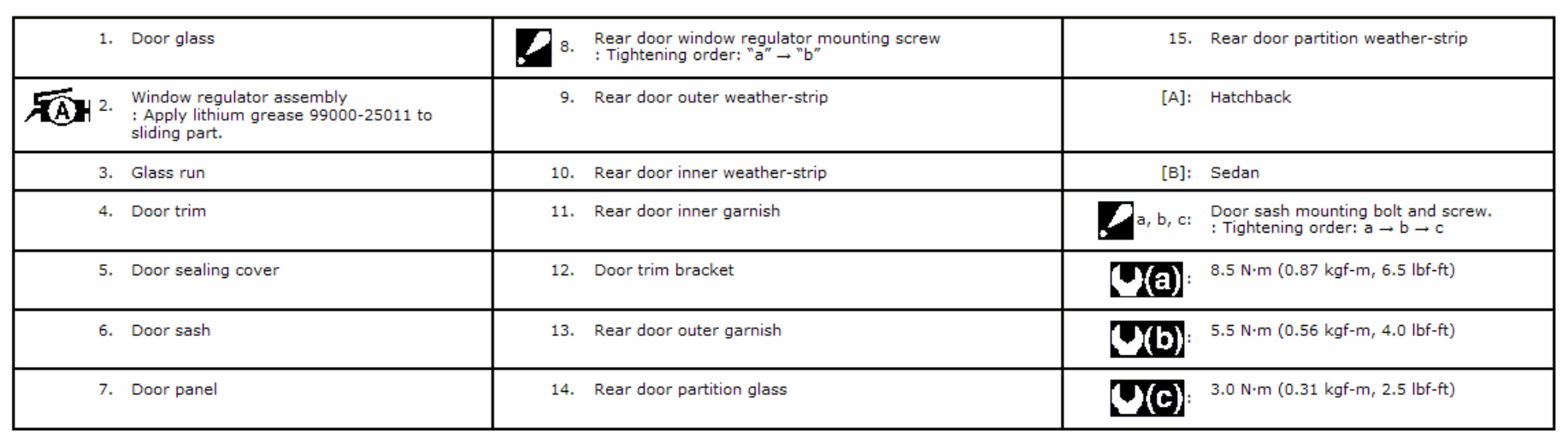

Fig 2: Identifying Rear Door Window Components (2 of 2)
G00520607
