A-4 Cooling System Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
A-4 Cooling System Circuit Diagram

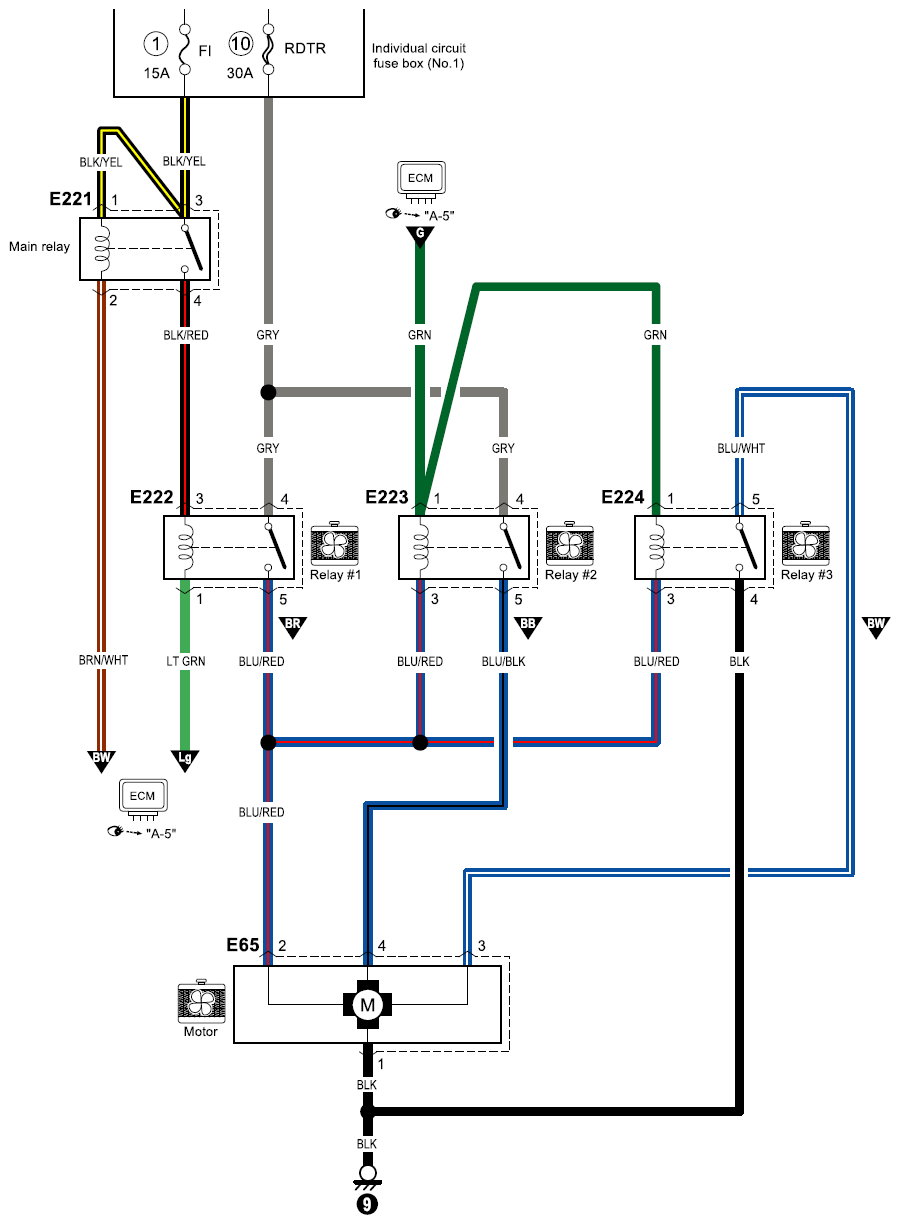

Fig 1: A-4 Cooling System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
