SX4 Base, Automatic CVT
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Wiring Systems
>>
List of Connectors
>>
L Connector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
L Connector

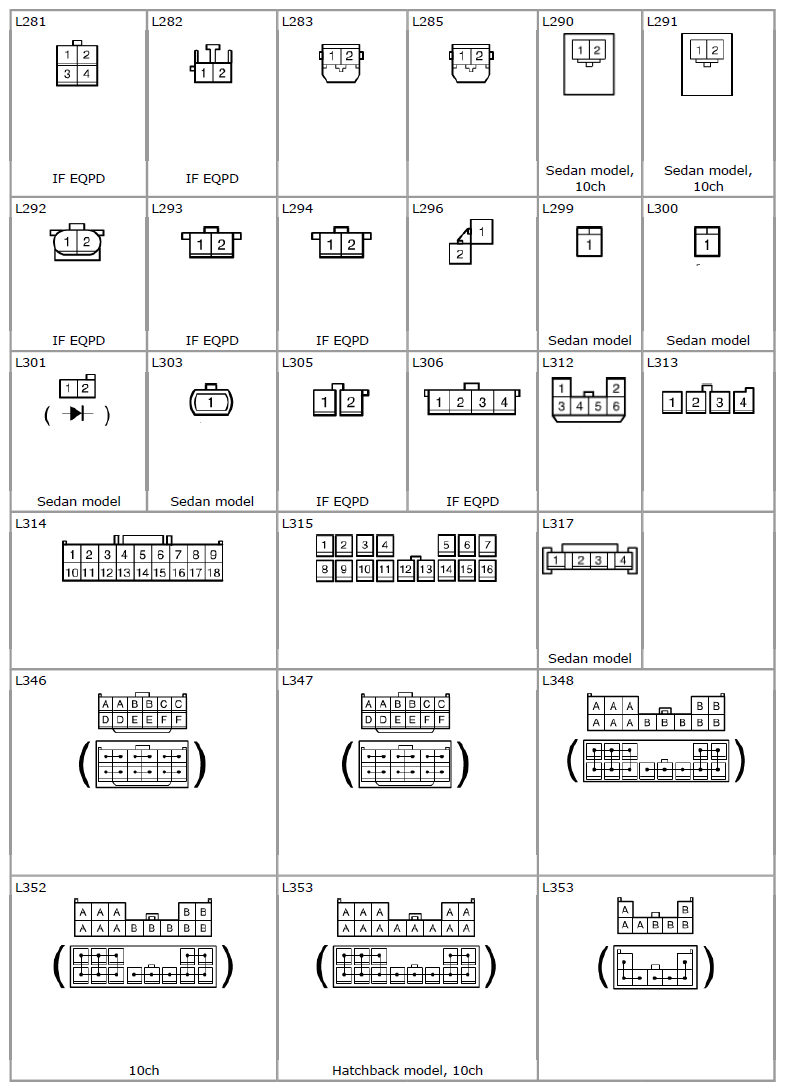

Fig 1: Identifying L Connector And Reference Chart (1 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

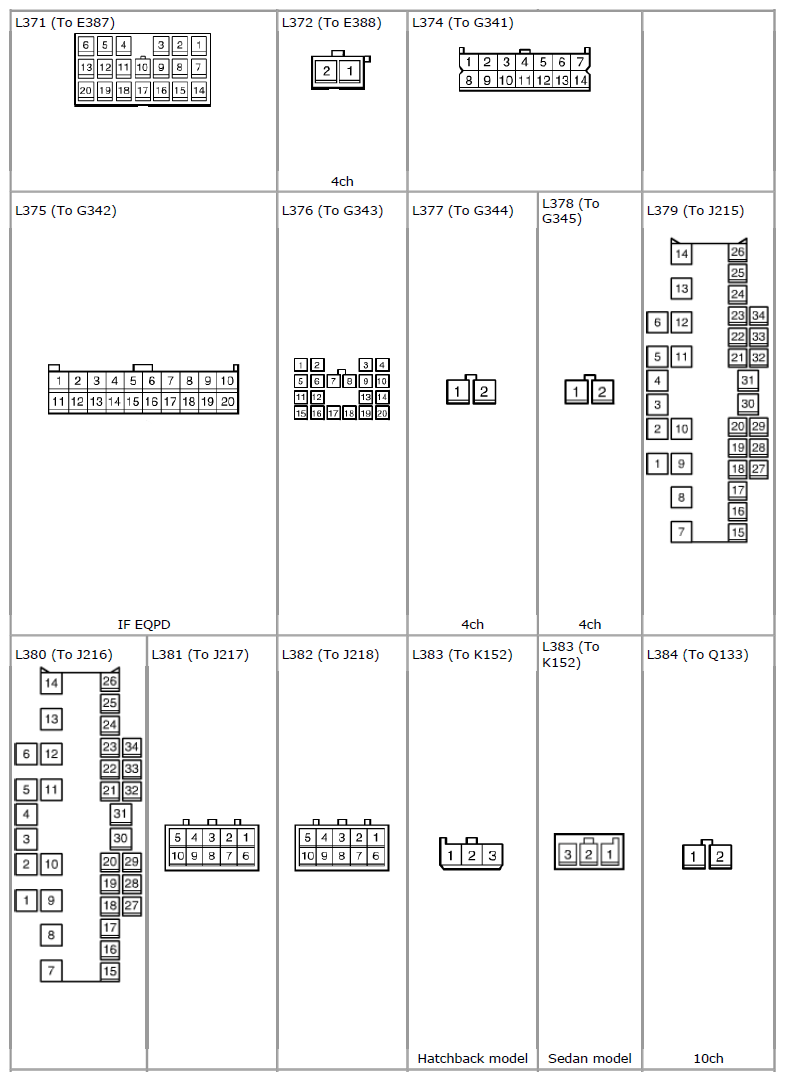

Fig 2: Identifying L Connector And Reference Chart (2 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

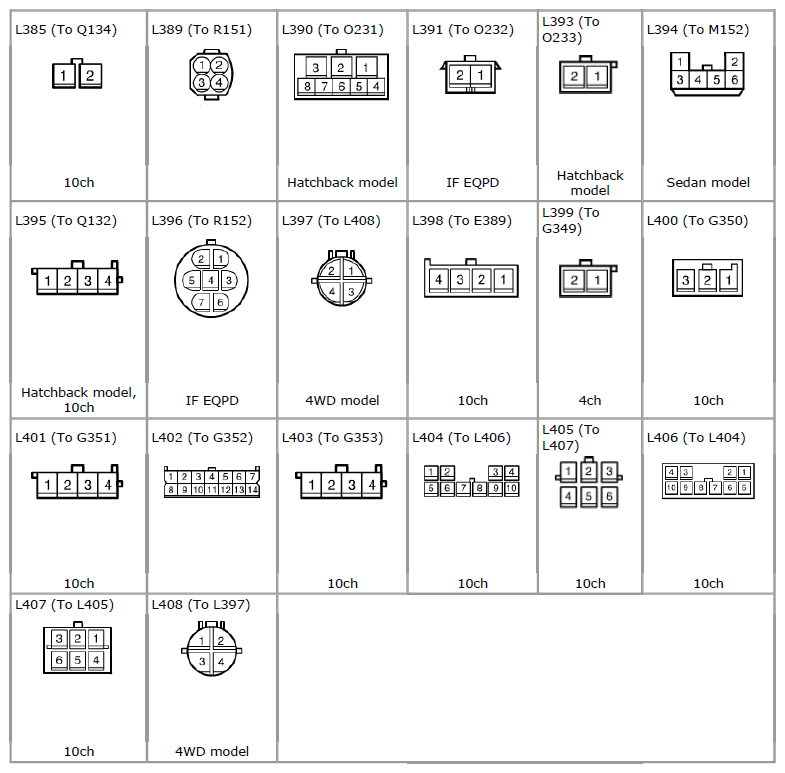

Fig 3: Identifying L Connector And Reference Chart (3 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 4: Identifying L Connector And Reference Chart (4 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
