CVT Oil Pan Inspection




CVT Oil Pan Inspection

CVT Oil Pan Removal and Installation

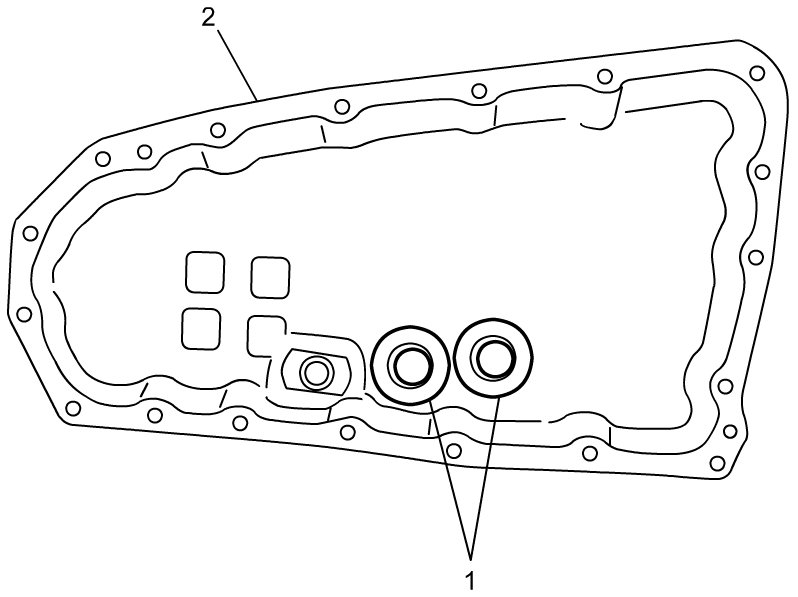

- Check that no metal particles are attached to the oil cleaner magnets (1). If attached, clean.
- Check CVT oil pan (2) for crack, deformation, and damage.
