Brake Rotor/Disc

Disc Brake Rotor Specifications

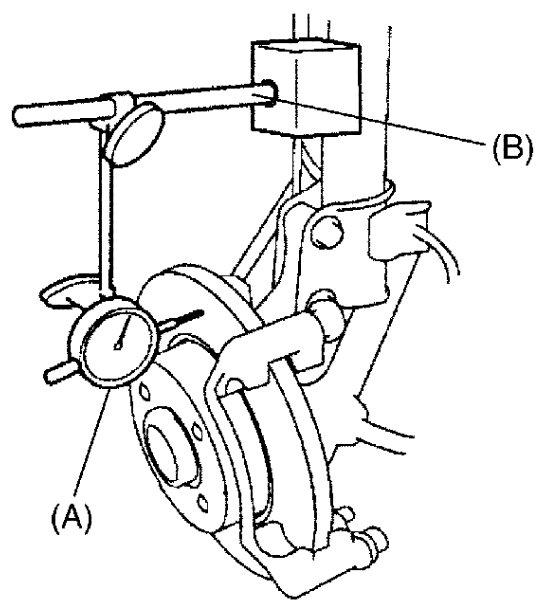

Front brake disc deflection
Limit 0.10 mm (0.004 in.) max

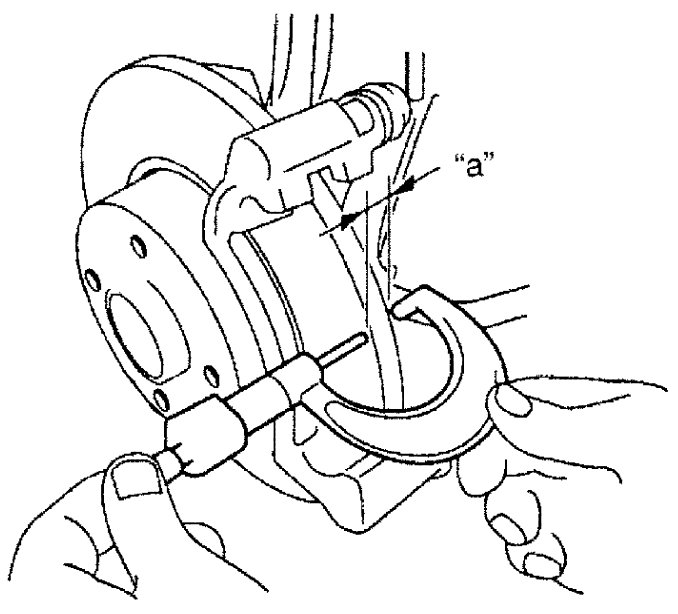

Front brake disc thickness
"a"
Standard 22.0 mm (0.87 in.)
Limit 20.0 mm (0.79 in.)

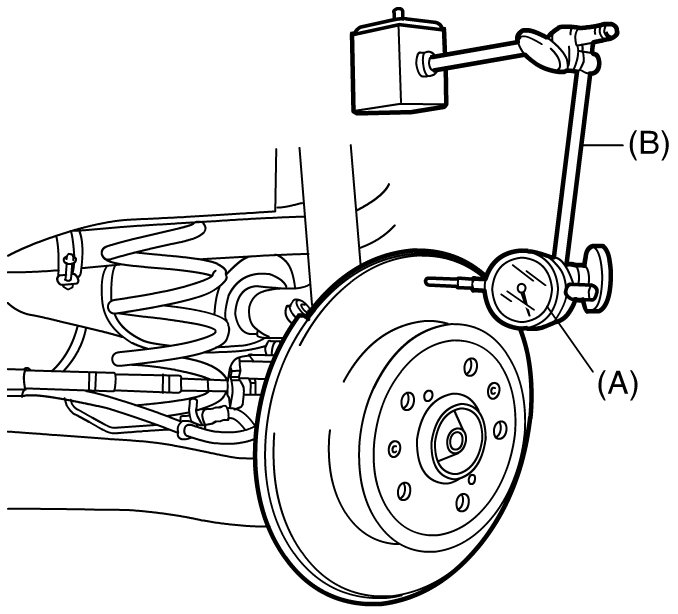

Rear brake disc deflection
Limit 0.10 mm (0.004 in.) max

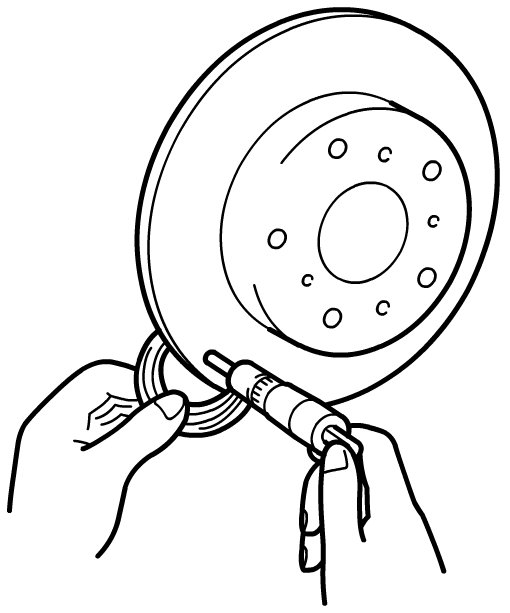

Rear brake disc thickness
Standard 9 mm (0.354 in.)
Limit 8 mm (0.315 in.)
