Engine Symptom Diagnosis




Engine Symptom Diagnosis

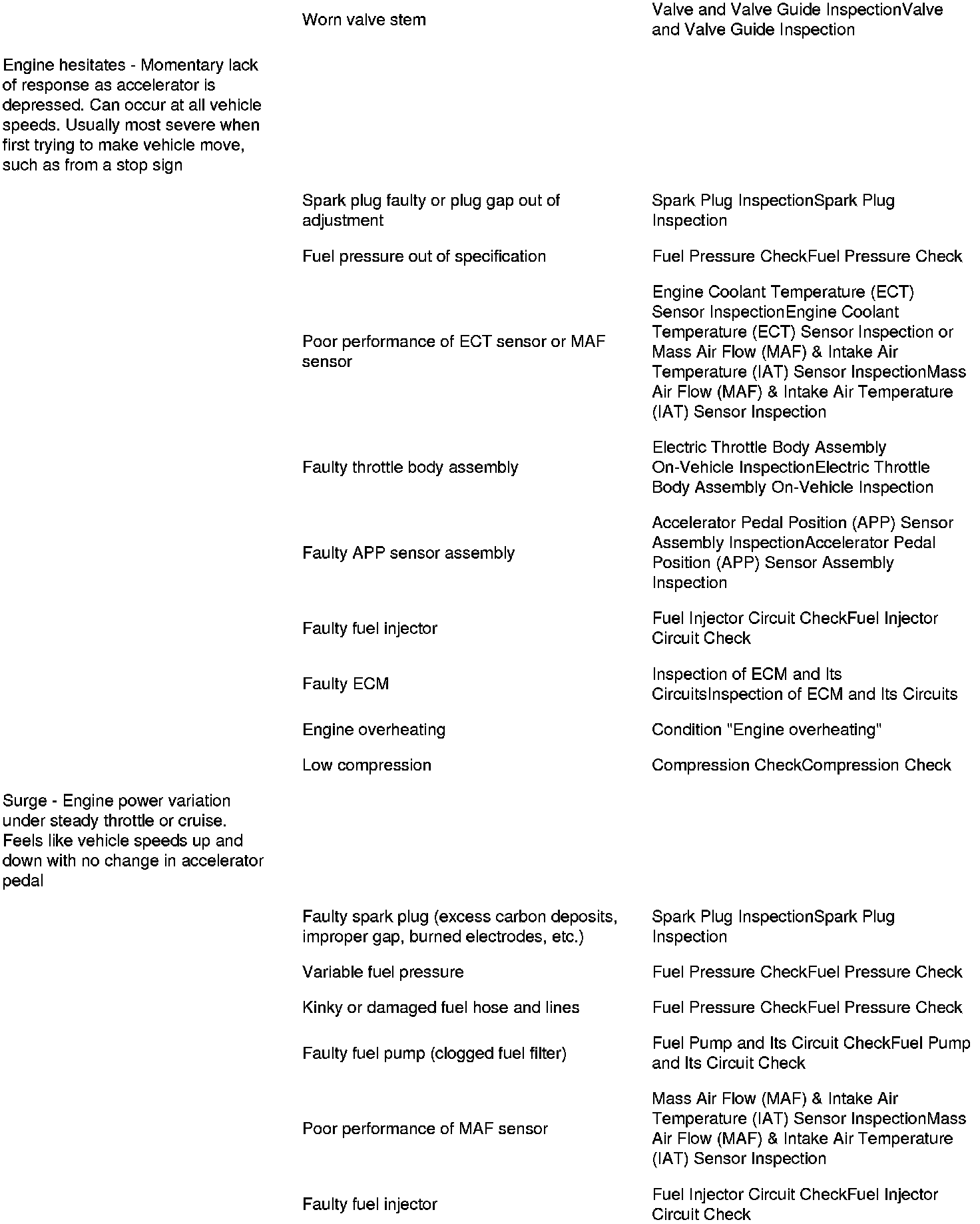

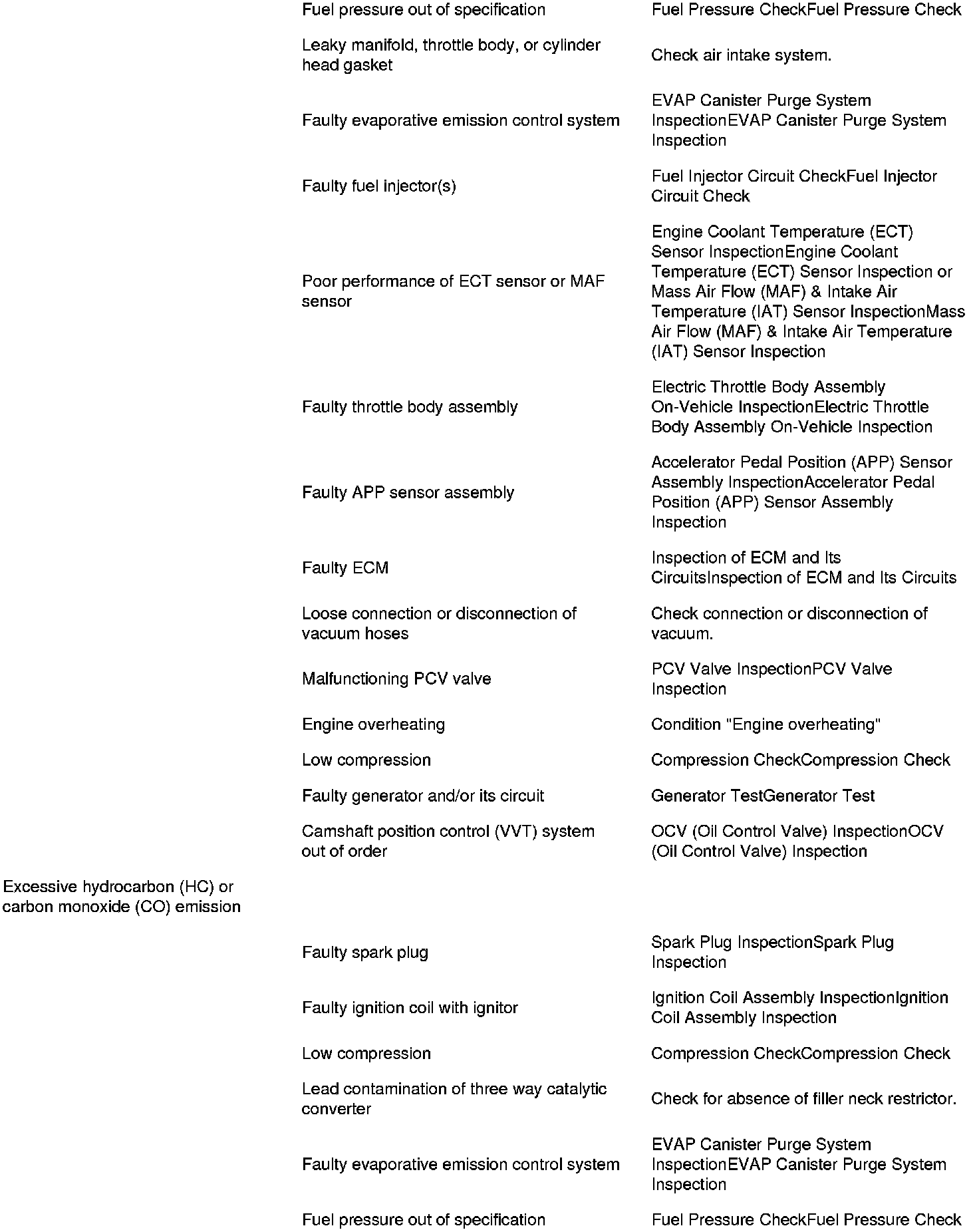

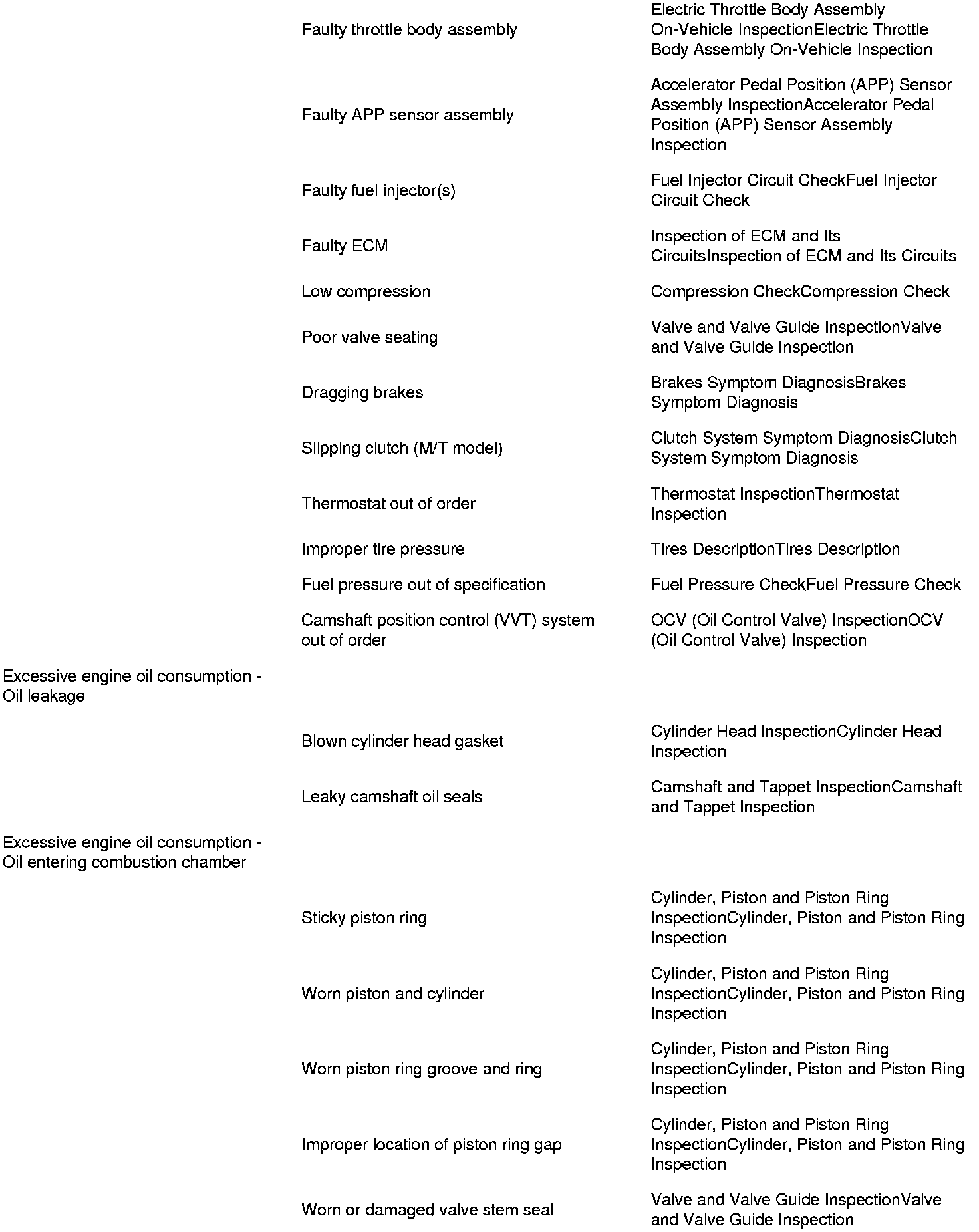

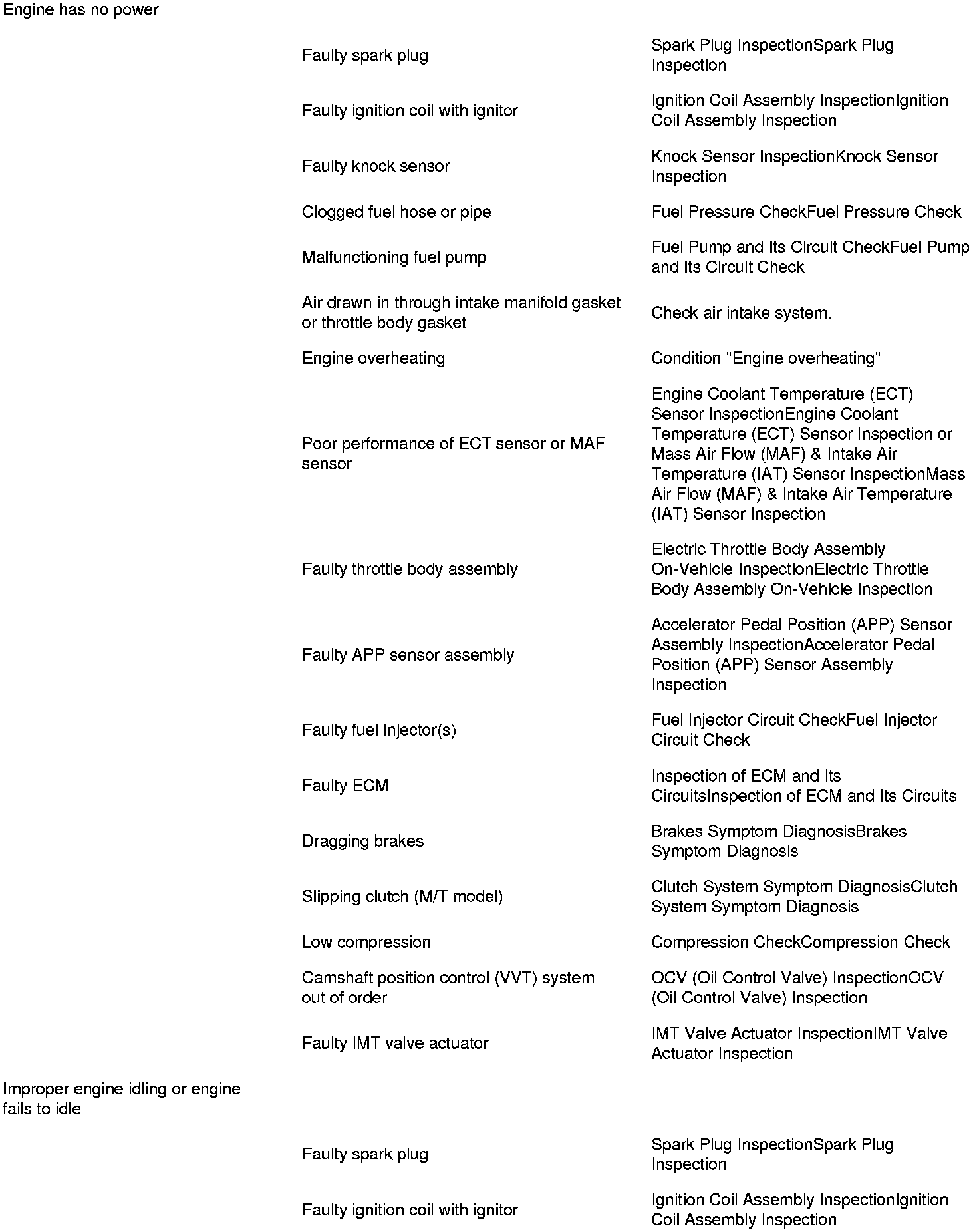

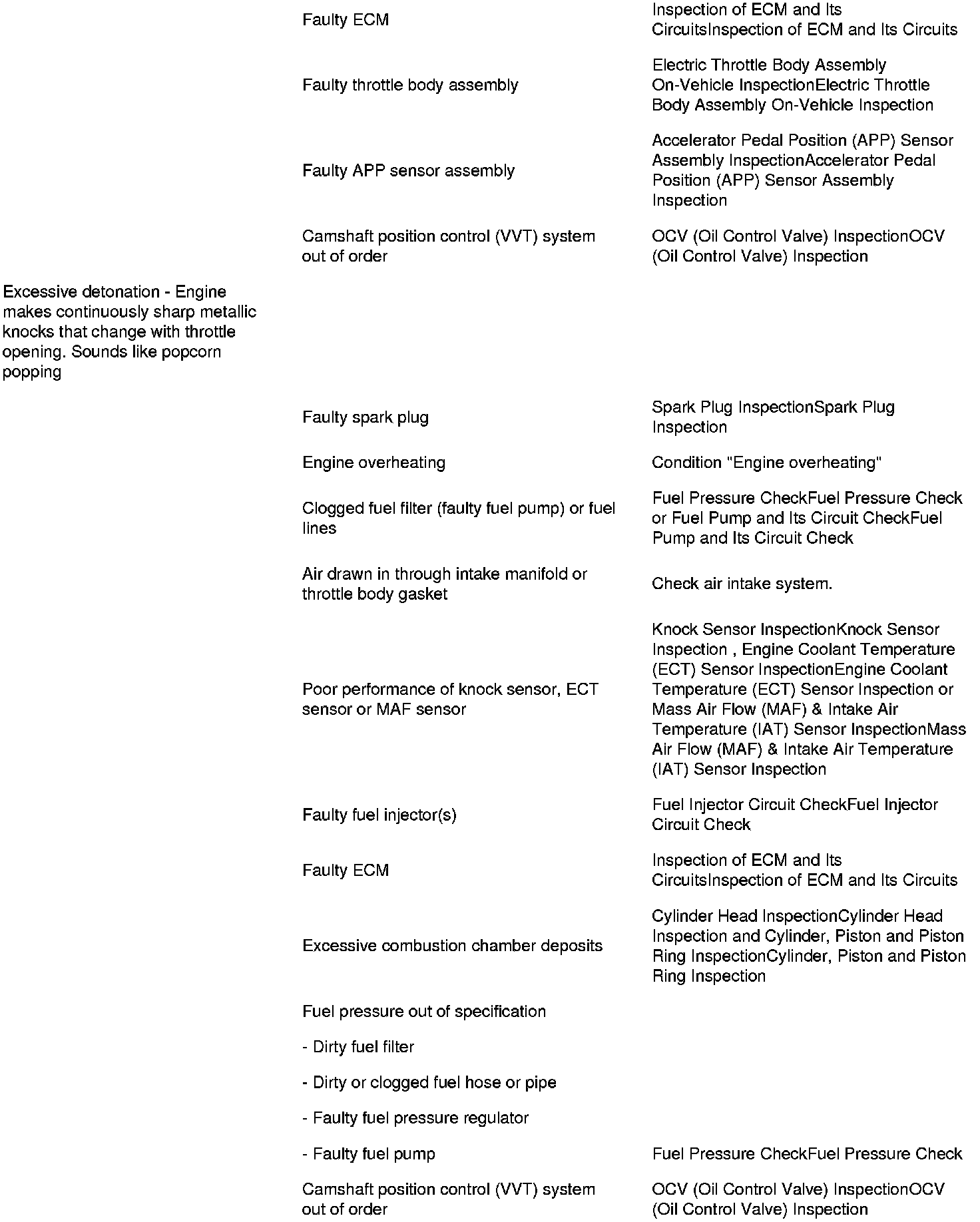

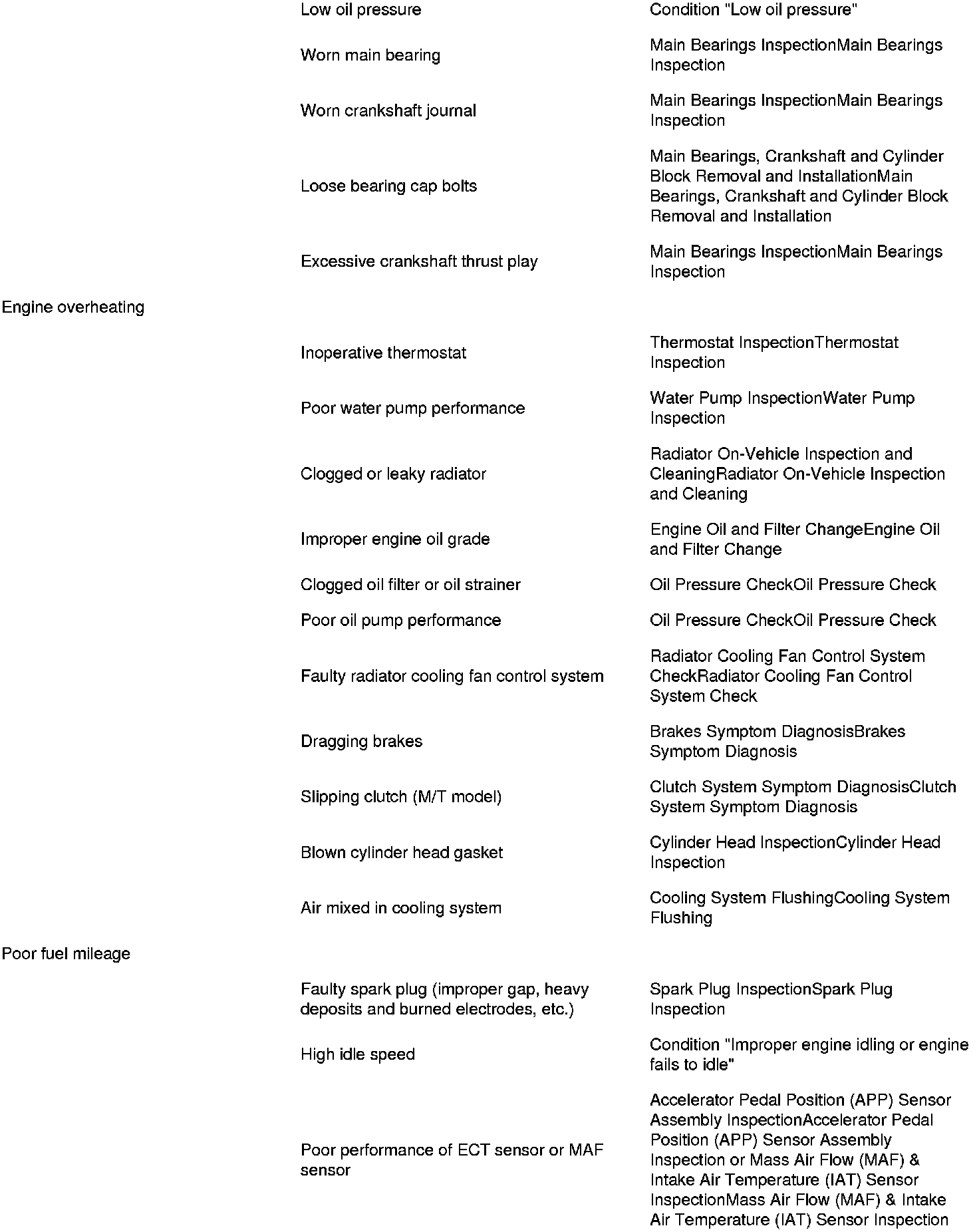

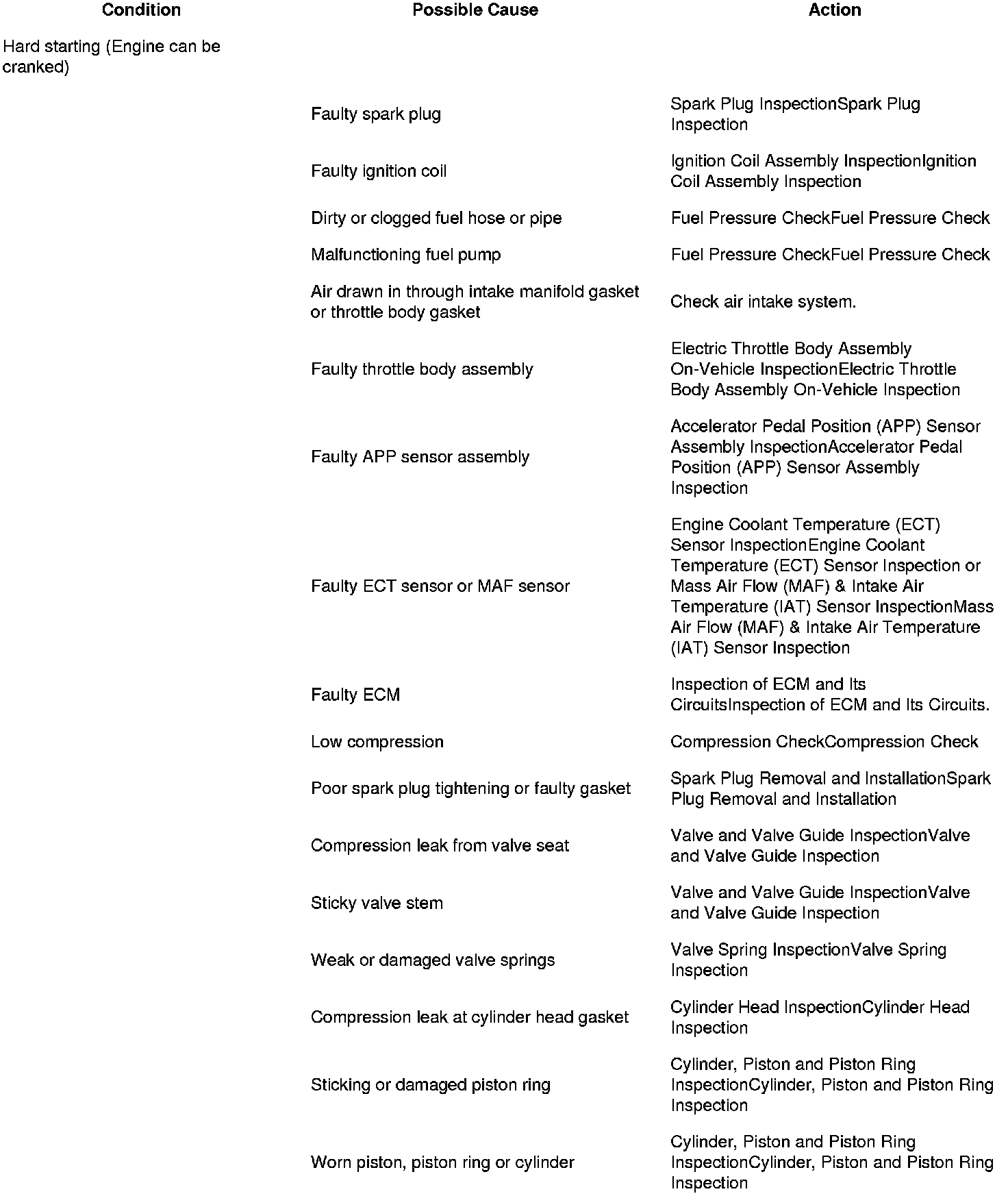

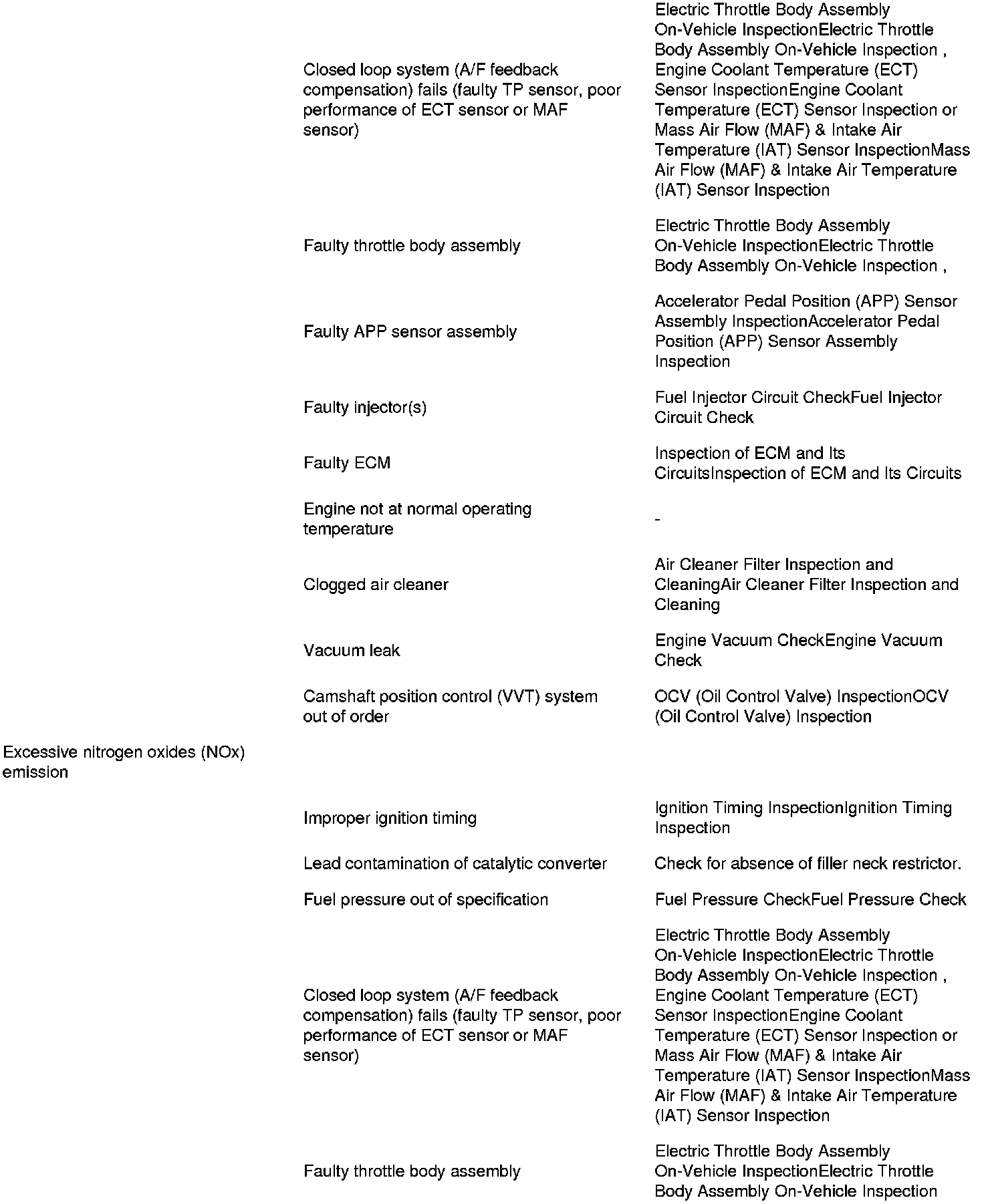

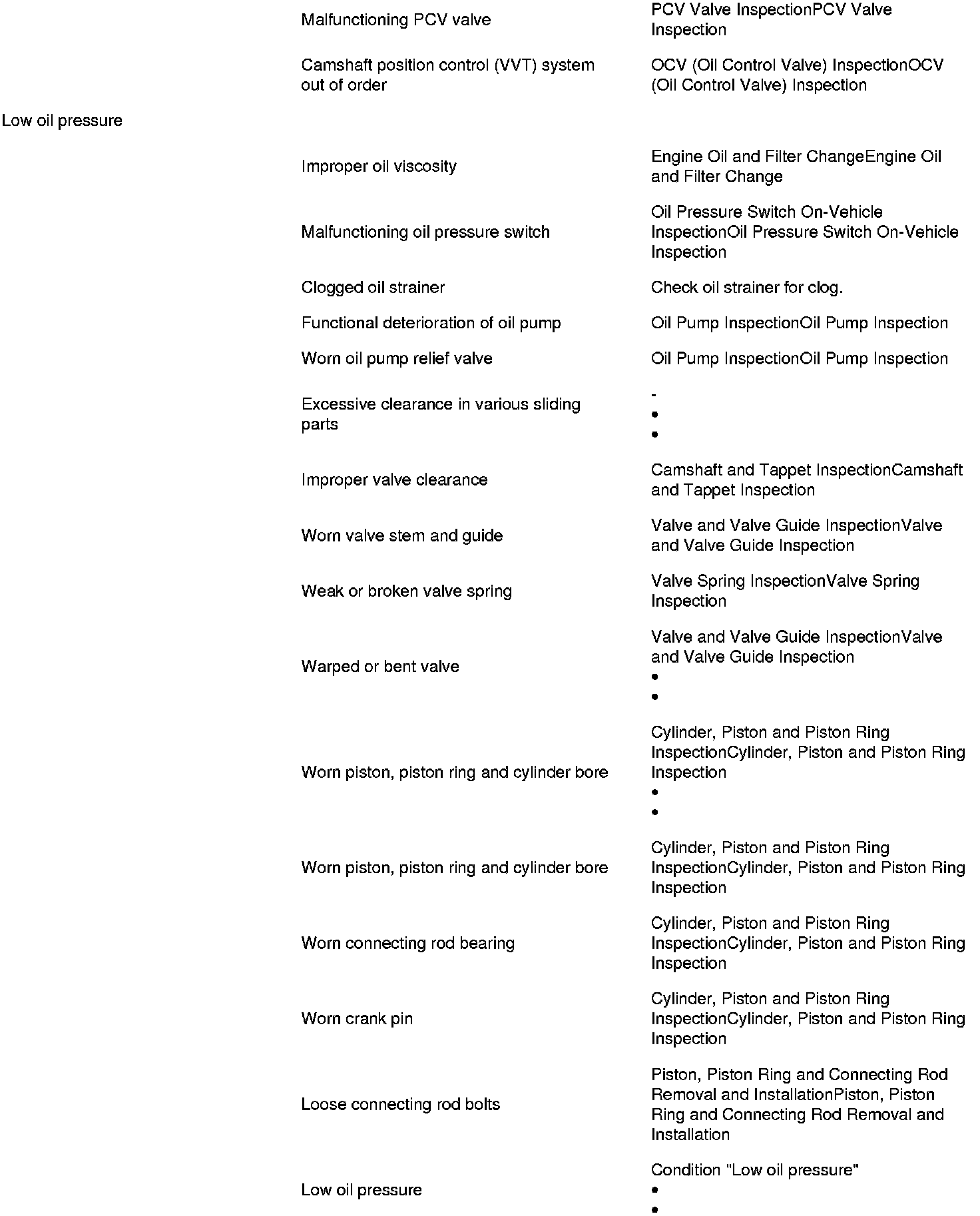

Perform troubleshooting referring to the following when ECM has detected no DTC and no abnormality has been found in Visual Inspection Visual Inspection
and Engine Basic Inspection Engine Basic Inspection.










































-

-

-

-
