System Diagram

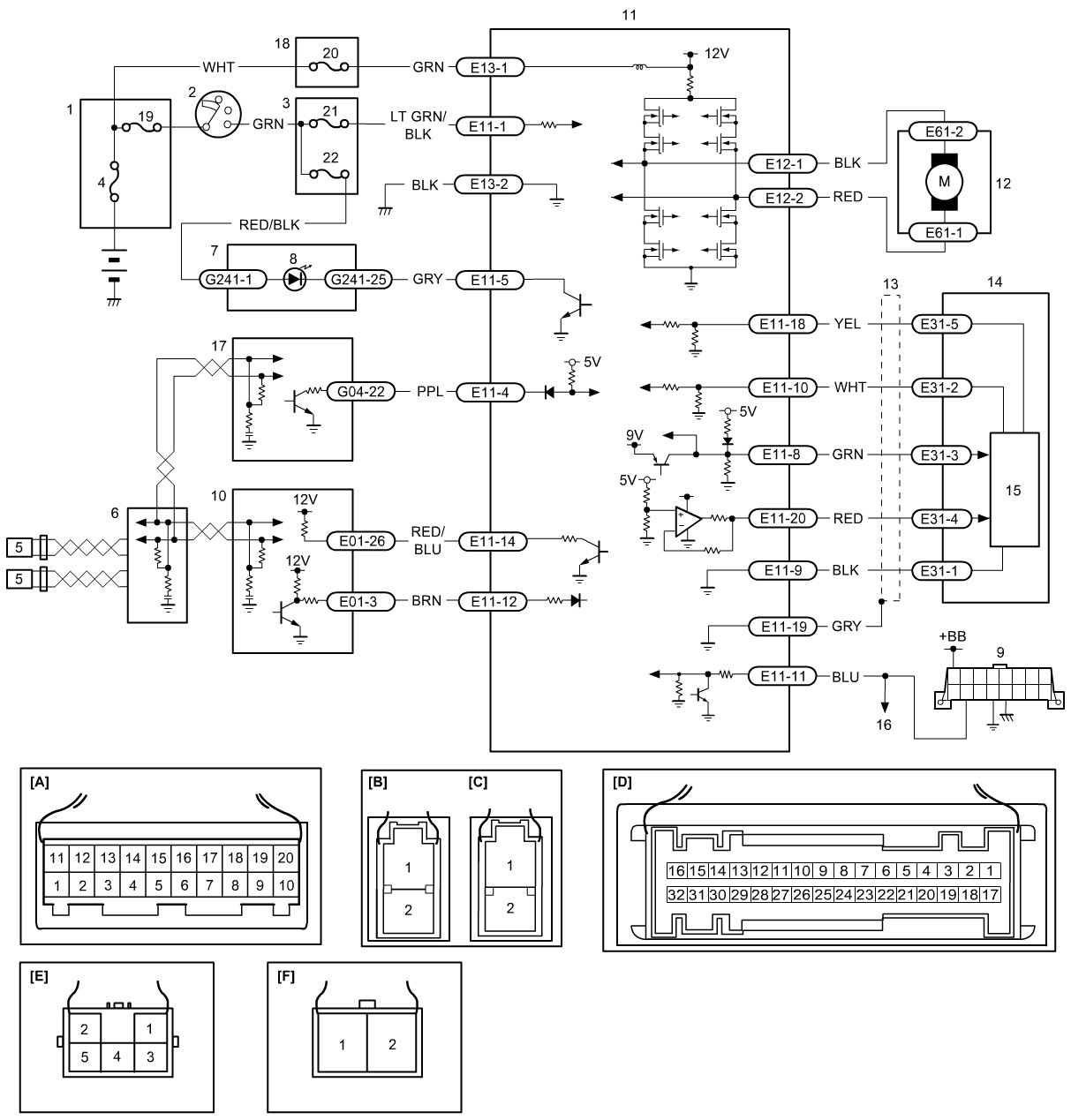

EPS System Wiring Circuit Diagram

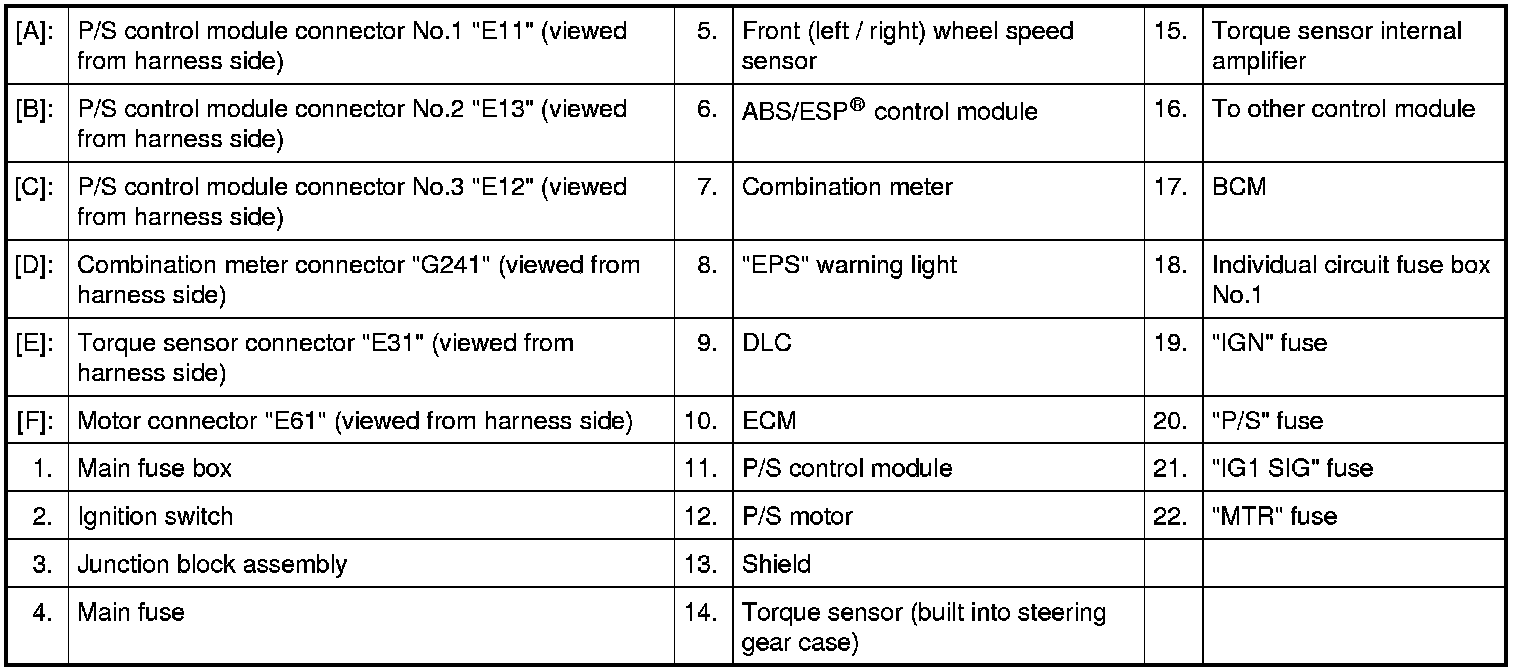

Terminal Arrangement of P/S Control Module Coupler (Viewed from Harness Side)
