A-8 Body Control System Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

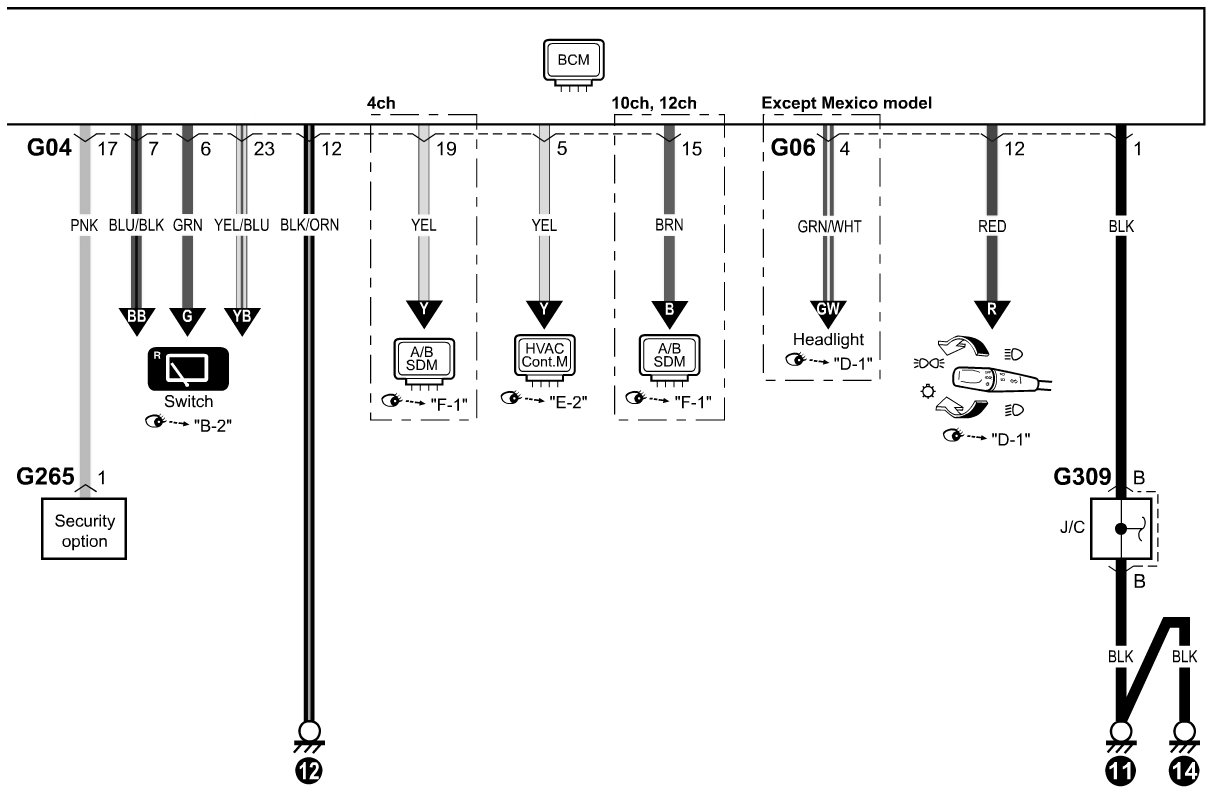

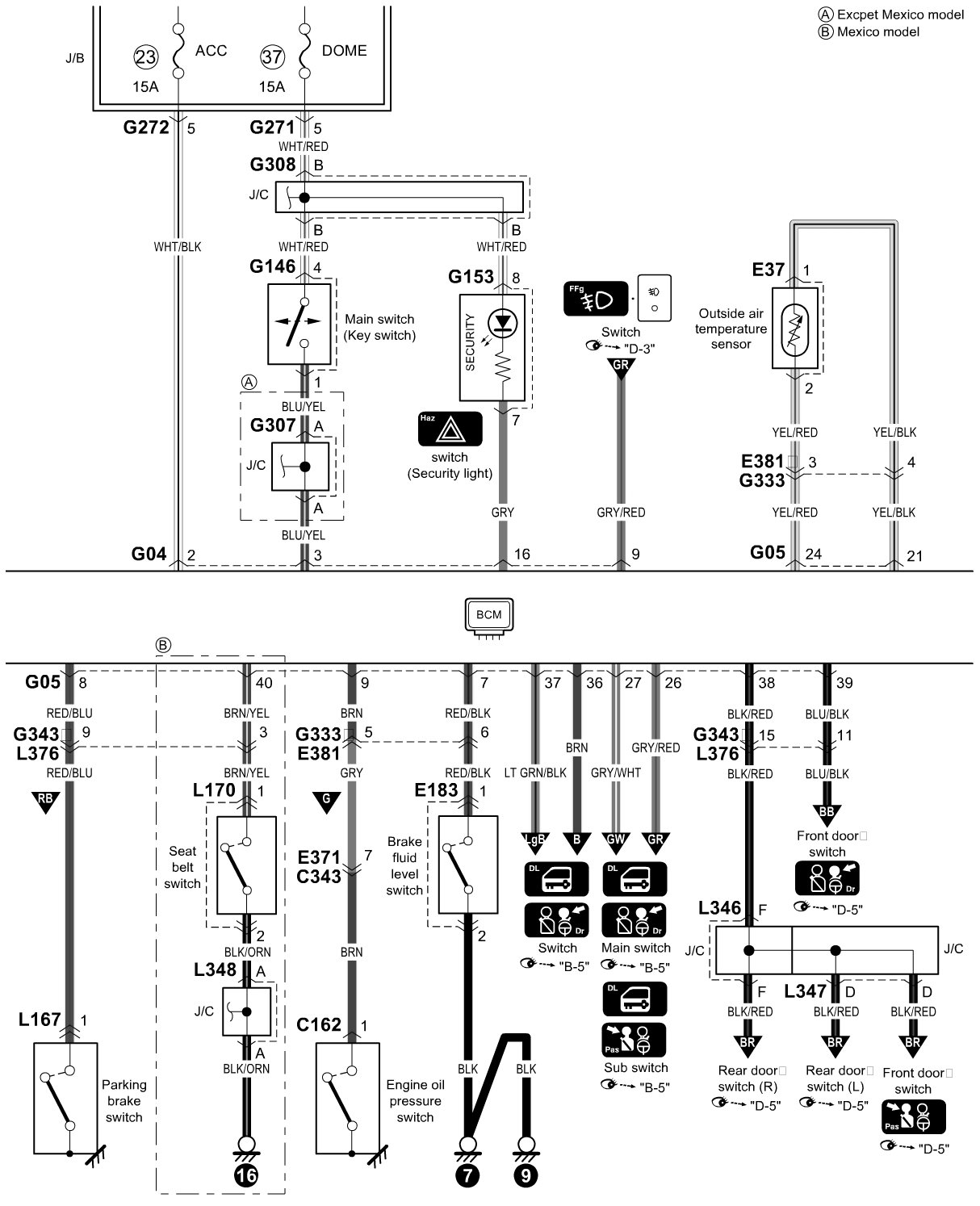

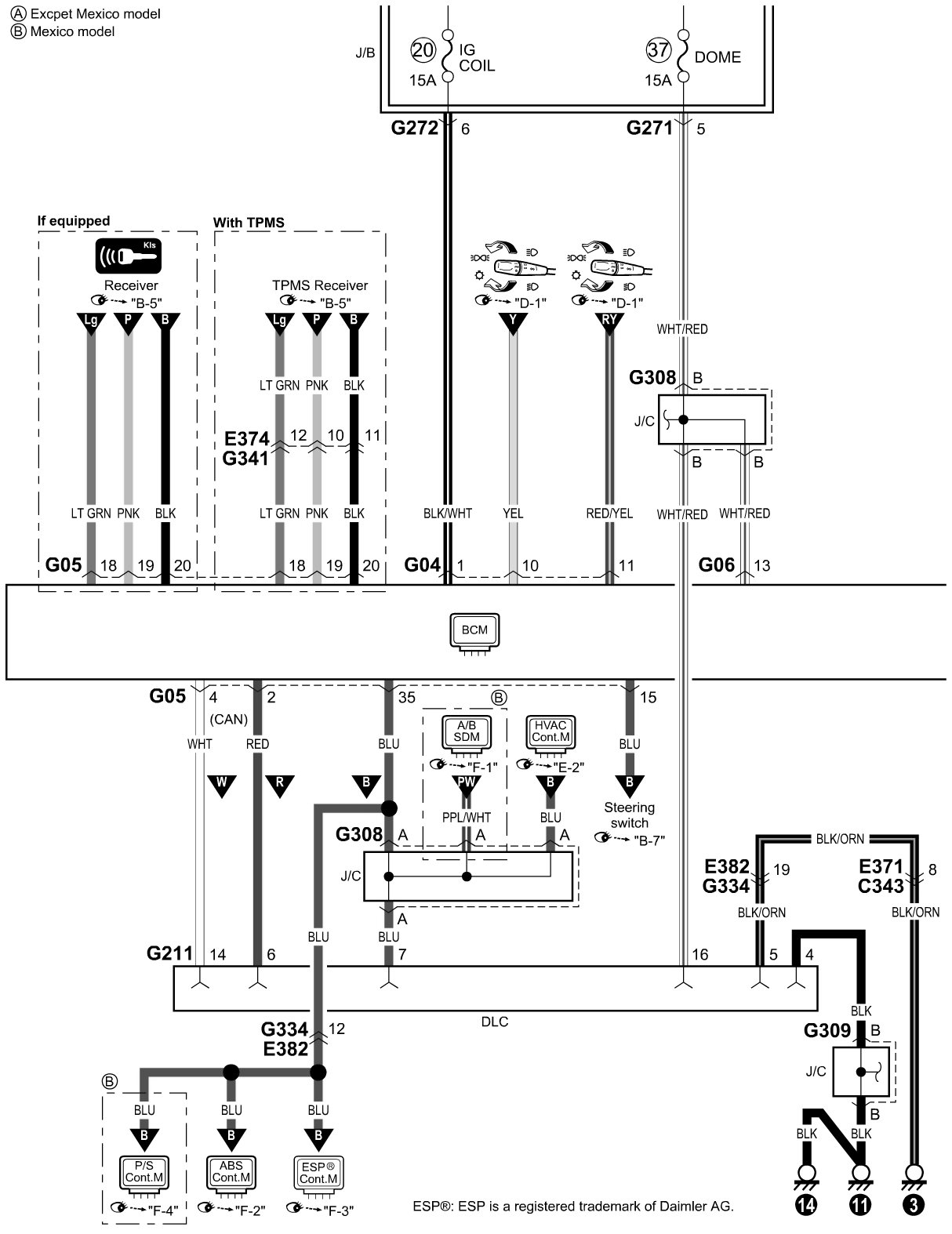

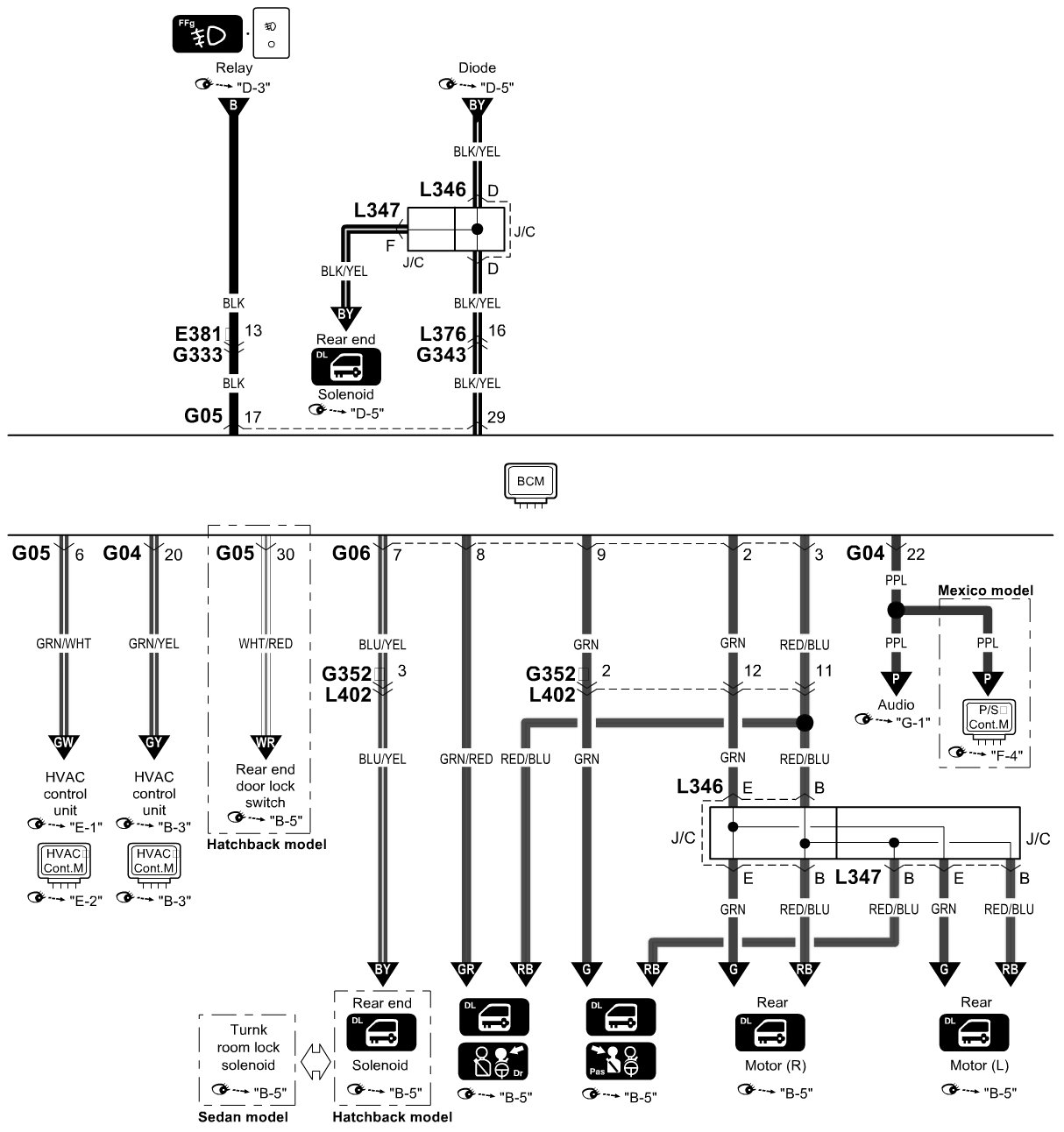

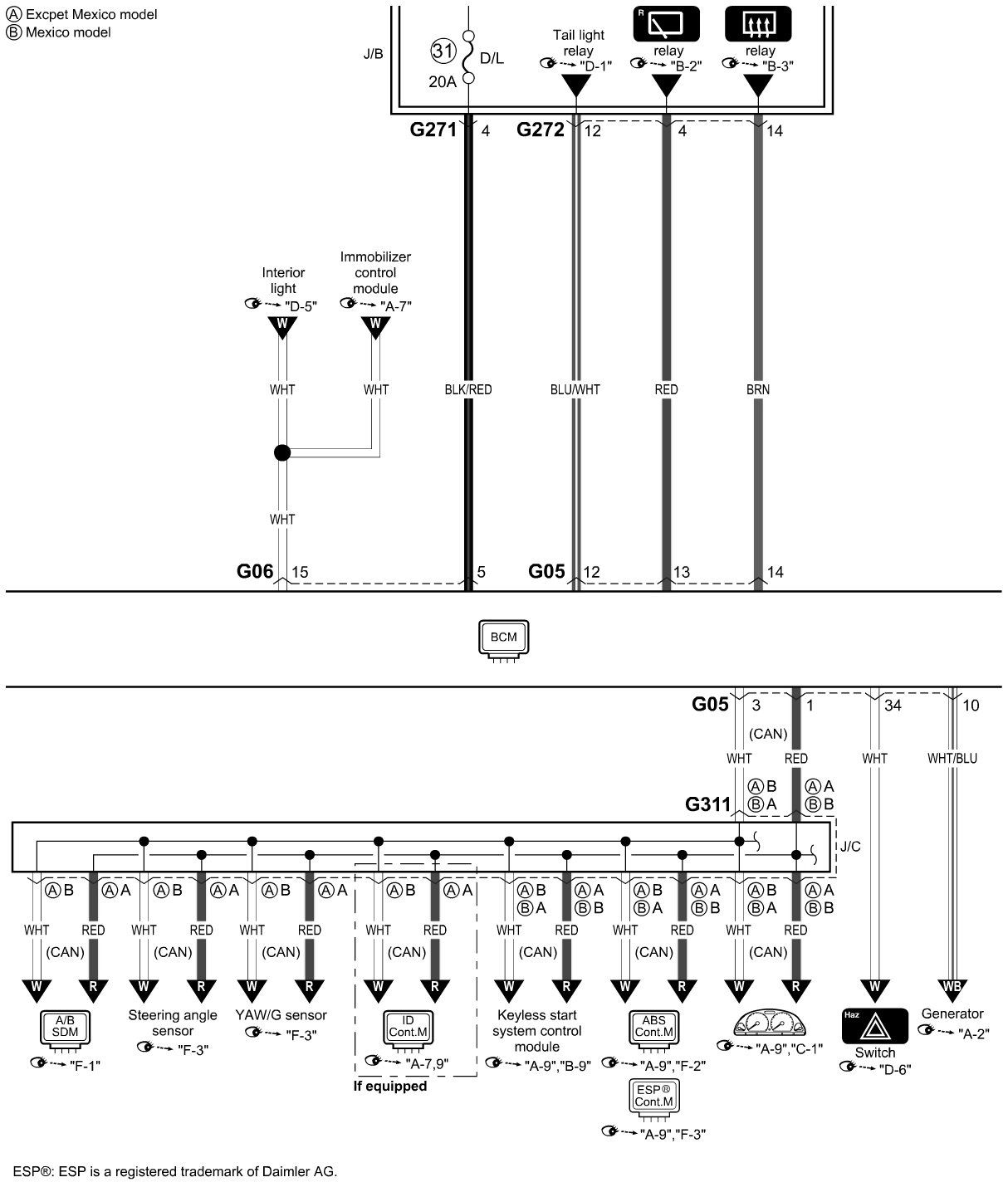

A-8 Body Control System Circuit Diagram
A-8 Body Control System Circuit Diagram
