Brake Pad: Specifications

Disc Brake Pad Specifications

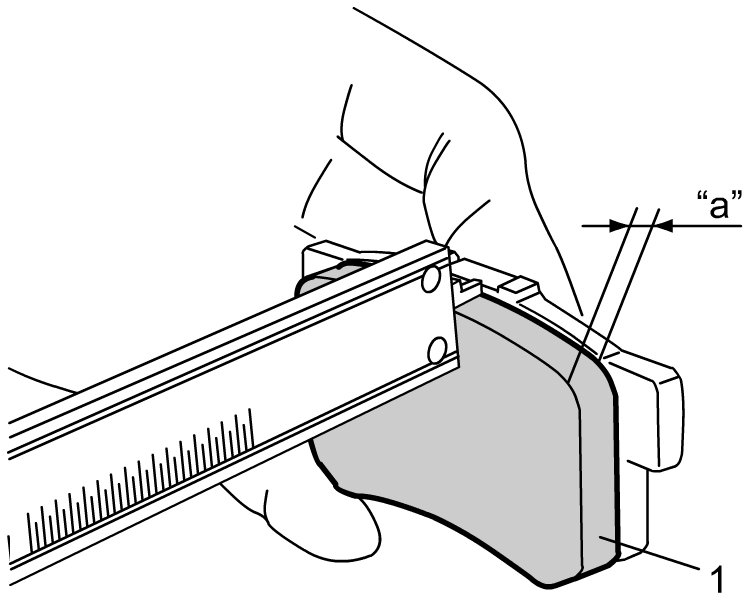

Front disc brake pad thickness (lining thickness)
"a"
Standard 10 mm (0.39 in.)
Limit 2 mm (0.08 in.)









Rear disc brake pad thickness (lining thickness)
"a"
Standard 9.0 mm (0.354 in.)
Limit 1.0 mm (0.039 in.)
