Immobilizer Control System

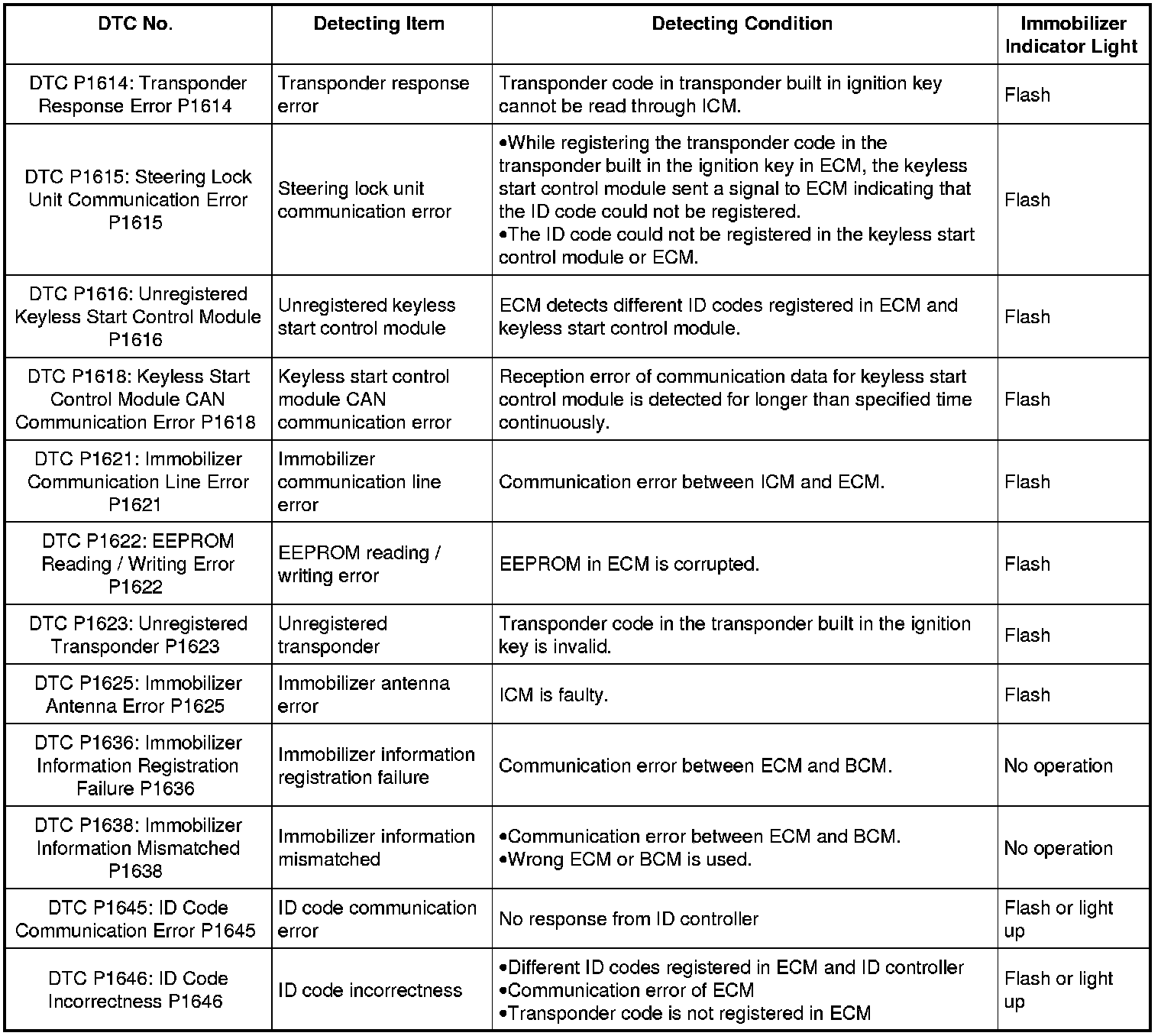

DTC Table

ECM





NOTE:

If any DTC other than the above DTCs is detected, refer to ECM DTC Table.
