ABS

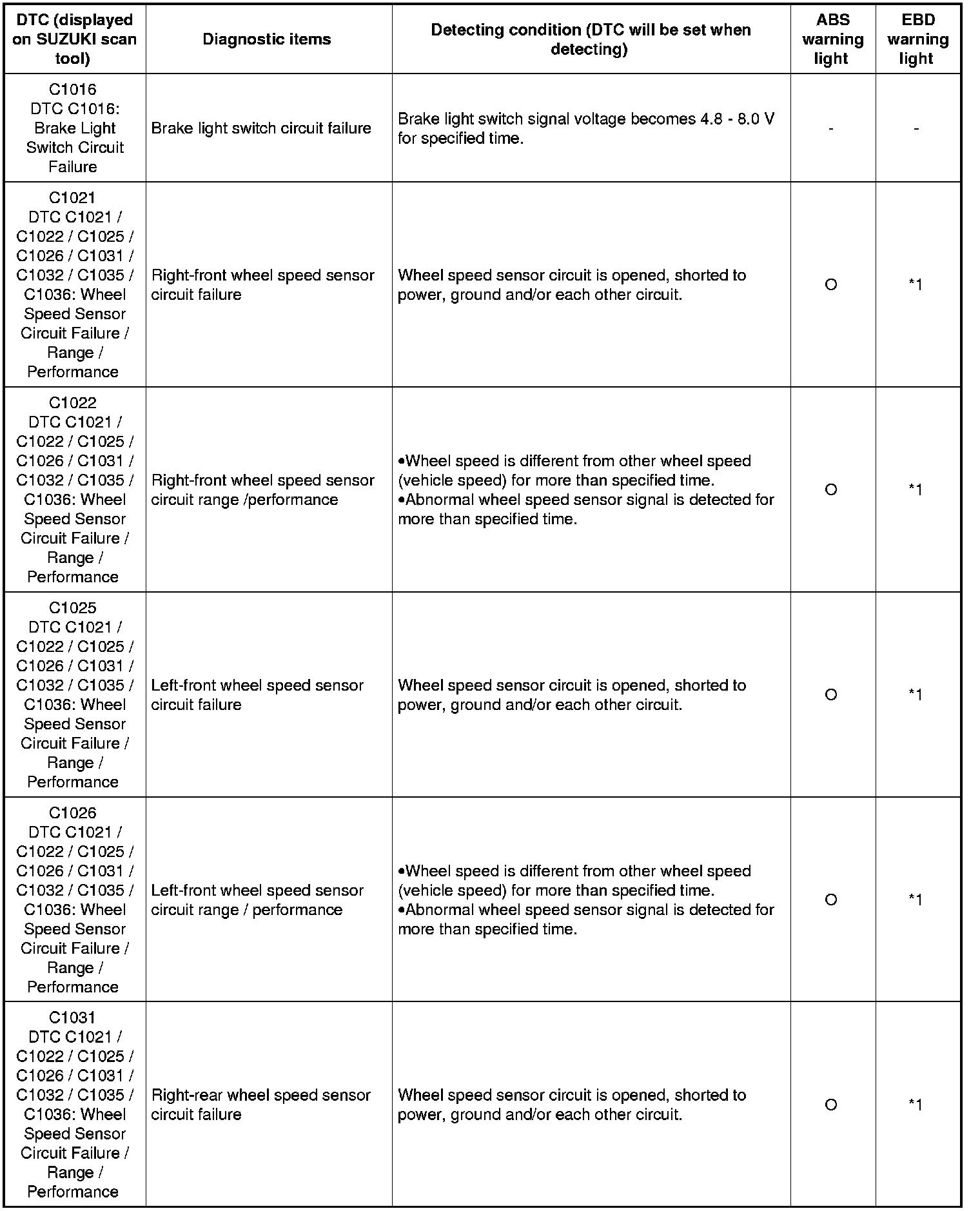

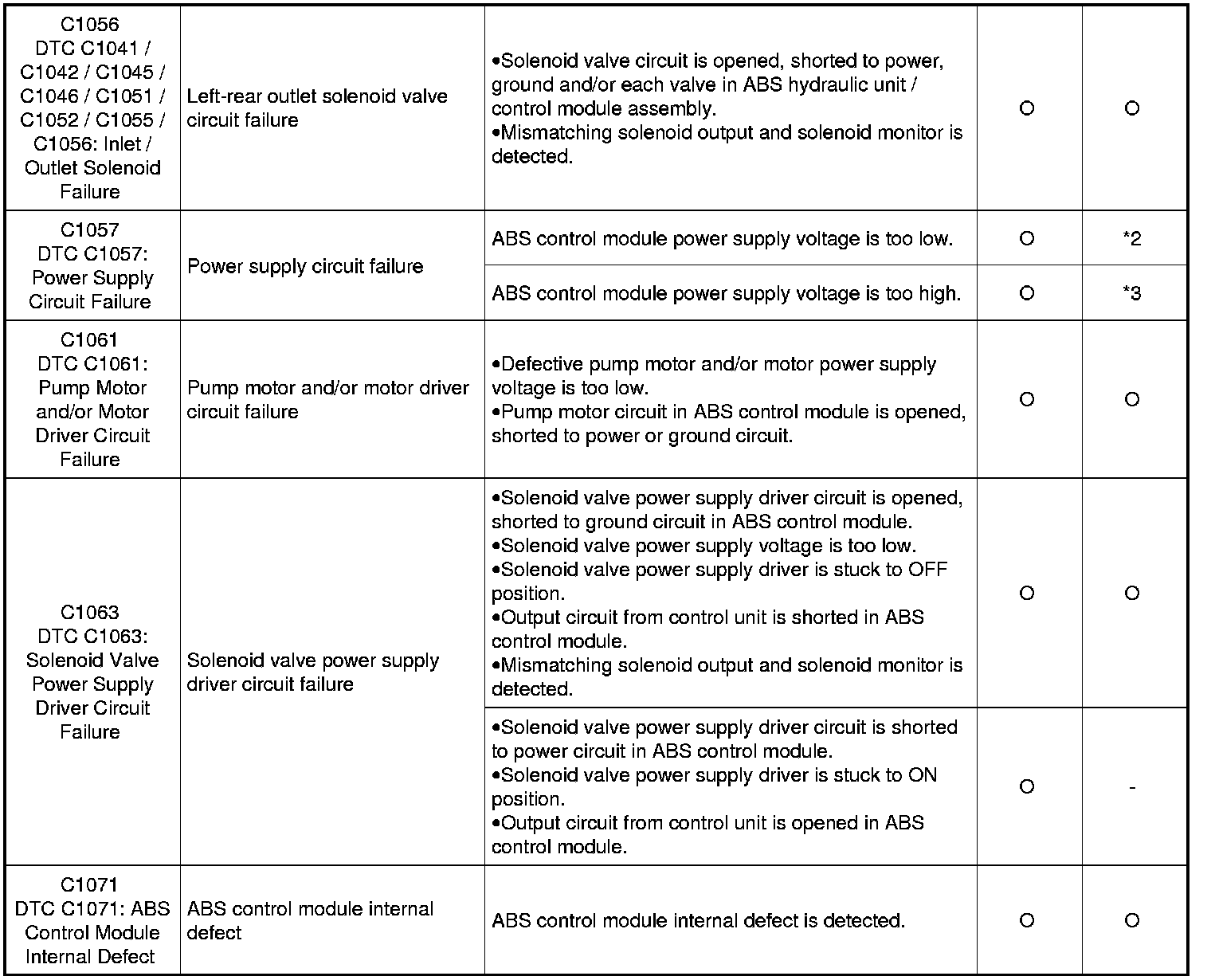

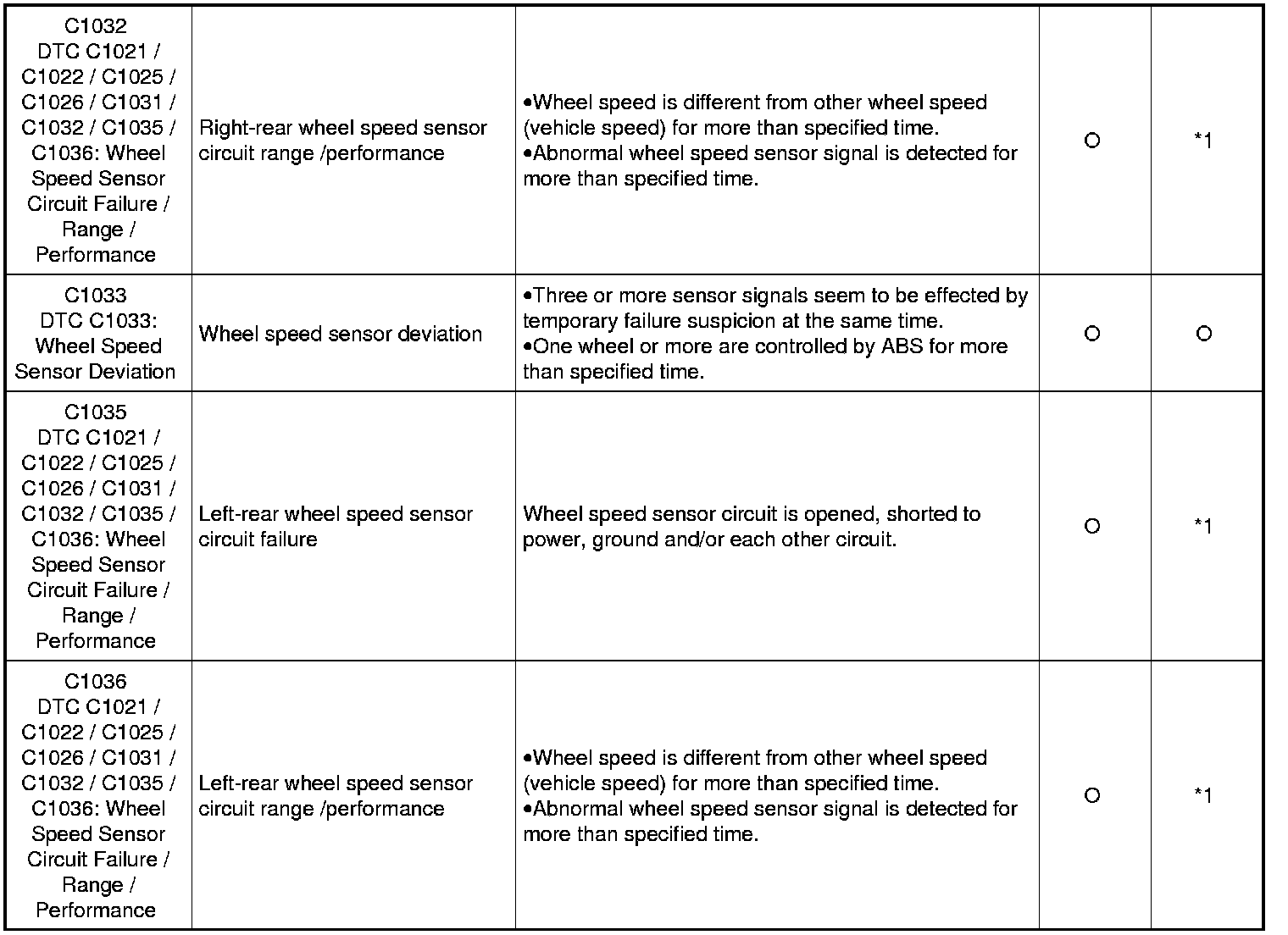

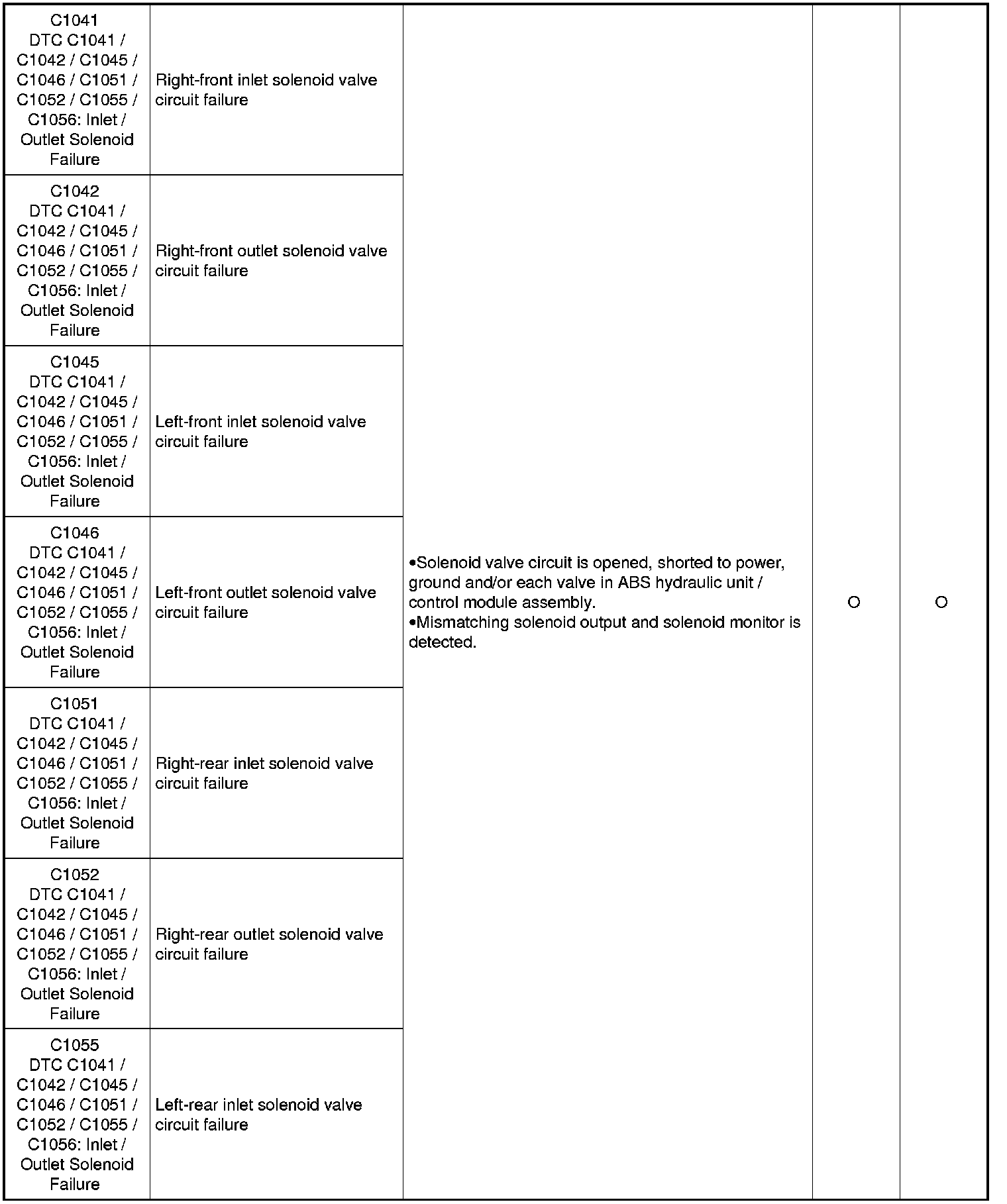

DTC Table

NOTE:

If you do not perform the ABS Check ABS Check
before starting the diagnosis, the diagnosis will show a false result.

Be sure to perform the ABS Check ABS Check
before starting the diagnosis.

















NOTE:

- "O" in ABS warning light and EBD warning light column of the above table means warning light is lit when DTC is detected.
- *1: If two or more wheel speed sensor are defective, EBD warning light (brake warning light) is lit.
- *2: If ABS control module power supply voltage is lower about 8 V, EBD warning light (brake warning light) is lit.
- *3: If ABS control module power supply voltage is higher than 18 V, EBD warning light (brake warning light) is lit.
