CVT Oil Pan Change (TS 05 02045)
Publication date: 2015-02-09Reference number: TS 05 02045
CVT OIL PAN CHANGE
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 05 02045, Date of Issue:
February 9, 2015
| SUZUKI: | 2010 - 2011 Kizashi with Continuously Variable Transmission (CVT) |
CONDITION
Customer may report a loss of engine power during periods of high speed driving, pulling heavy loads, or driving steep grades and mountains.
CAUSE
When the CVT oil temperature becomes extremely high, the CVT Power Reduction function becomes active and engine power output is reduced.
CORRECTION

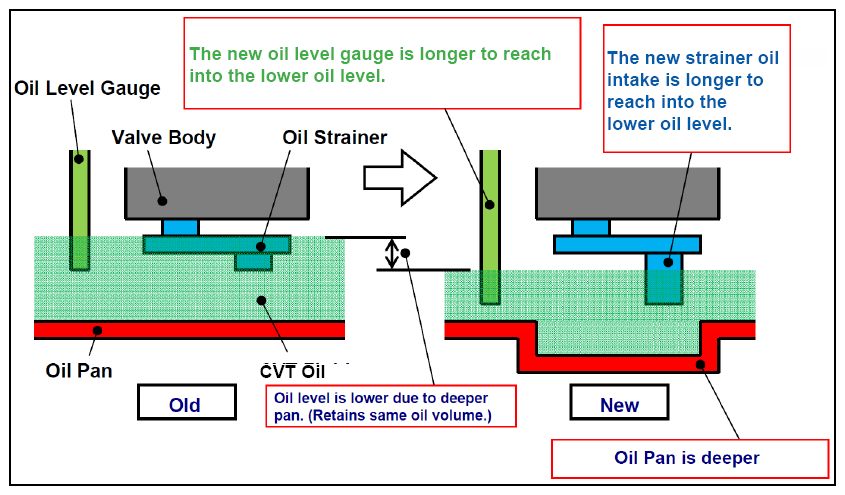

Design changes to the CVT oil pan will maintain normal oil operating temperature longer. Design changes also include a revised oil strainer and oil level gauge.
If a vehicle has the condition described above, install the New components listed in the table below.
NOTE:
When refilling the CVT oil, use Suzuki CVT Oil, P/N 990B0-01002 or an equivalent.
PARTS INFORMATION
PARTS INFORMATION
| Part Name | Part Number | ||
|---|---|---|---|
| Old | New | Notes | |
| Oil Pan Assy, CVT | 24761-54LS0 | 24761-57L30 | Old and New parts continue to be available from Suzuki. Never install any combination of Old and New parts. |
| Gauge, CVT Oil Level | 24830-54LS0 24830-57L10 |
24830-57L30 | |
| Strainer Assy, CVT Oil | 26572-54LR0 | 26572-57LR0 | |
| Gasket, CVT Oil Pan | 24762-54LS0 | ||
| Gasket, CVT Oil Pan Drain Plug | 24824-54LS0 | ||
| Bolts, CVT Oil Pan | 24362-54LS0 | ||
NOTE:
Installing the New CVT oil pan without the New CVT oil strainer will result in a lack of CVT lubrication and cause CVT damage.
When replacing the Old oil pan with the New pan, always install a New oil strainer and New level gauge.
Never reuse oil pan bolts, the oil pan gasket or the oil pan drain plug gasket - always replace them with new parts once they are removed.
When replacing the Old oil pan with the New pan, always install a New oil strainer and New level gauge.
Never reuse oil pan bolts, the oil pan gasket or the oil pan drain plug gasket - always replace them with new parts once they are removed.
