Floor




Floor

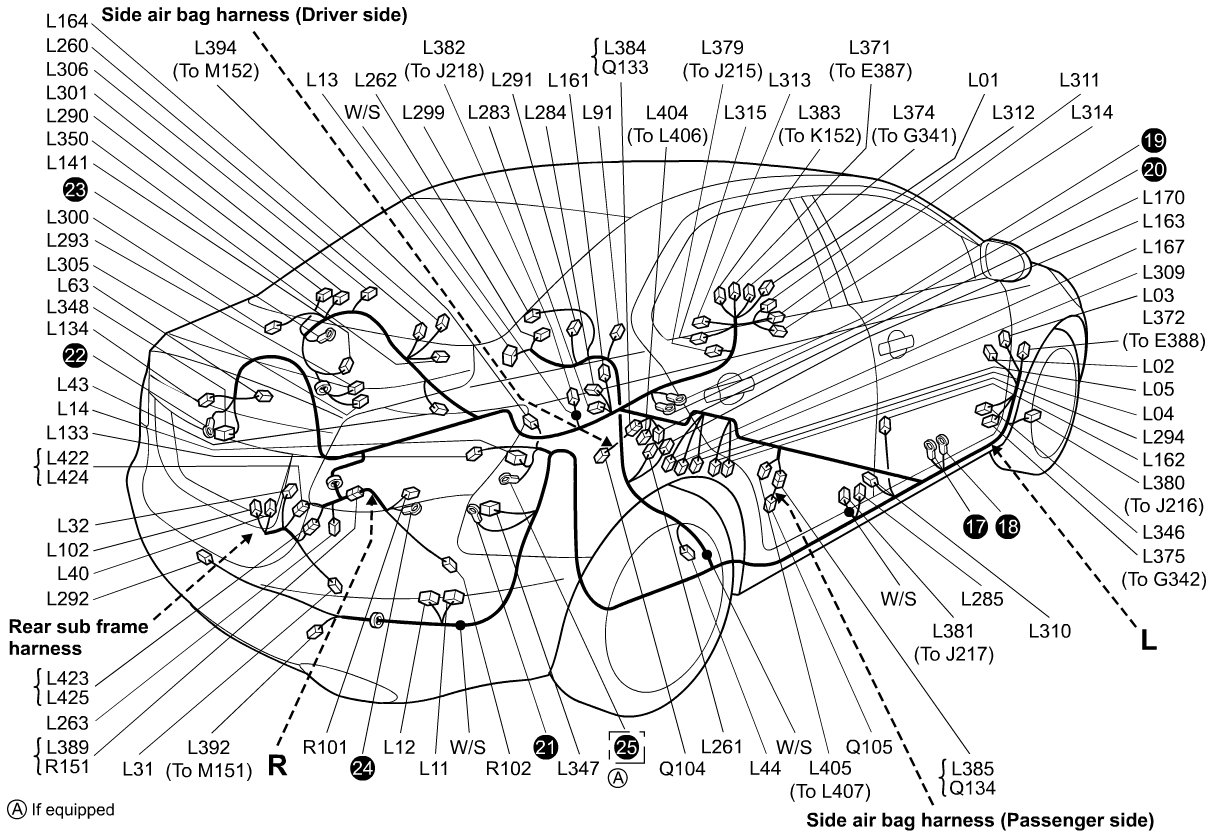

L: Floor Harness, Rear Sub Frame Harness / Q: Side Air Bag Harness / R: Fuel Pump Wire

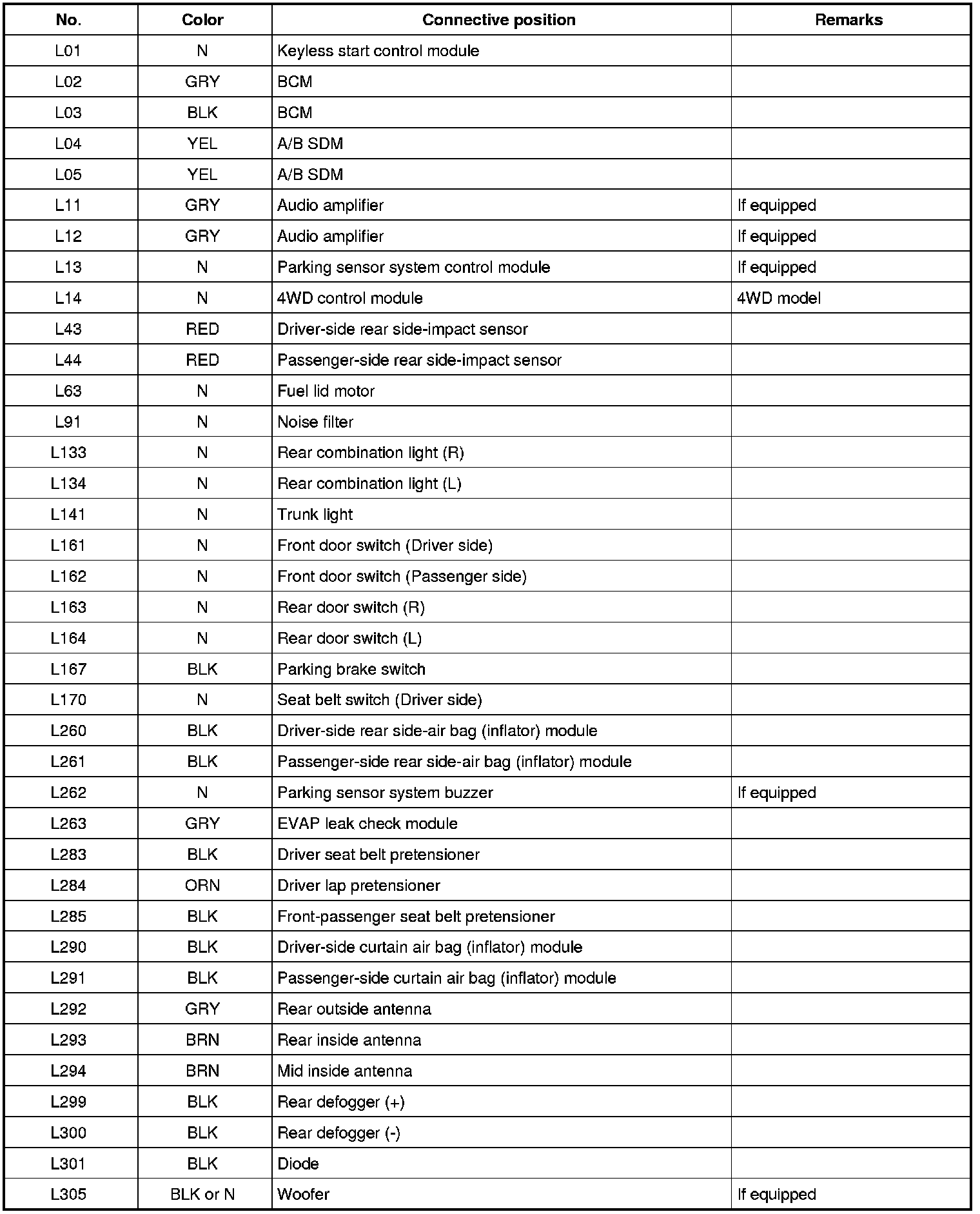

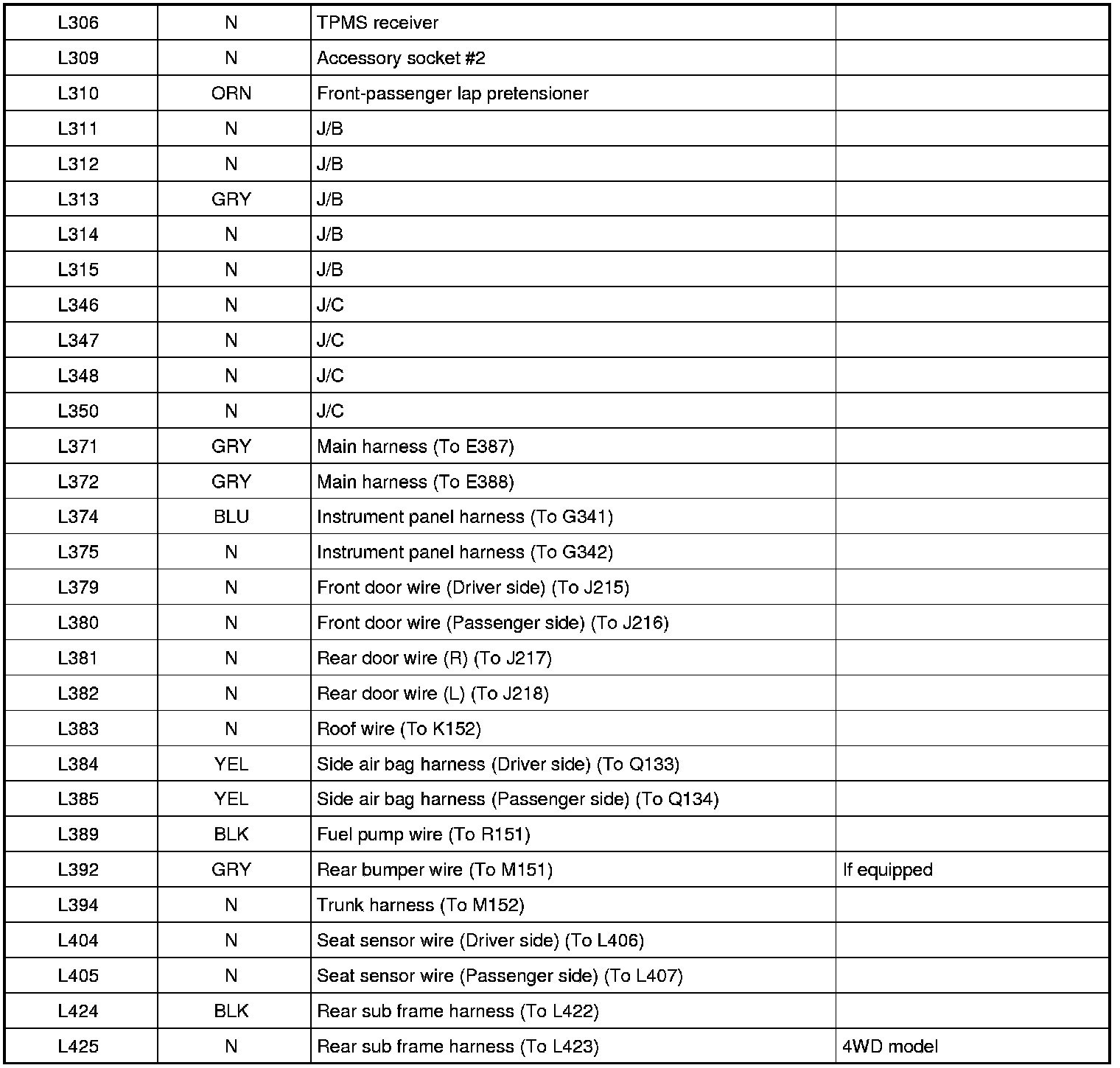

L: Floor Harness









L: Rear Sub Frame Harness





Q: Side Air Bag Harness (Driver Side)





Q: Side Air Bag Harness (Passenger Side)





R: Fuel Pump Wire
