CVT Oil Pan Inspection




CVT Oil Pan Inspection

CVT Oil Pan Removal and Installation

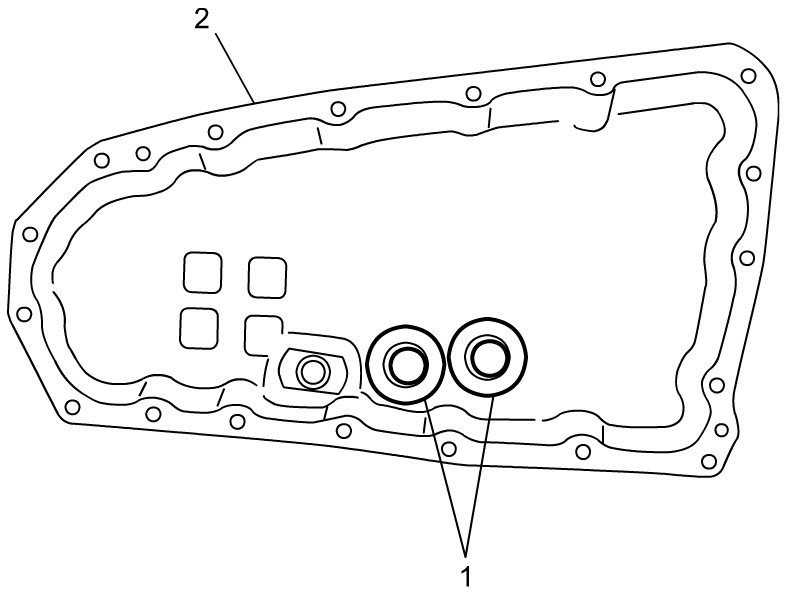

- Check that no metal particle is attached to the oil cleaner magnets (1). If attached, clean them.
- Check CVT oil pan (2) for crack, deformation, and damage. If any defect is found, replace CVT oil pan.
