CPP Switch Removal and Installation

CPP Switch Removal and Installation

Removal

1) Remove instrument panel undercover.

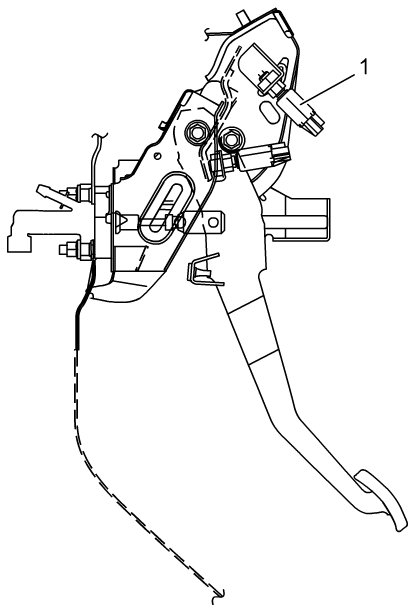

2) Disconnect connector of CPP switch (1) with ignition mode of keyless push start system in "OFF".
3) Remove CPP switch (1) from pedal bracket.






Installation

1) Install CPP switch to pedal bracket.
2) Adjust switch position. CPP Switch Inspection and Adjustment
3) Connect connector to CPP switch securely.
4) Install instrument panel undercover.
