Symptom Related Diagnostic Procedures

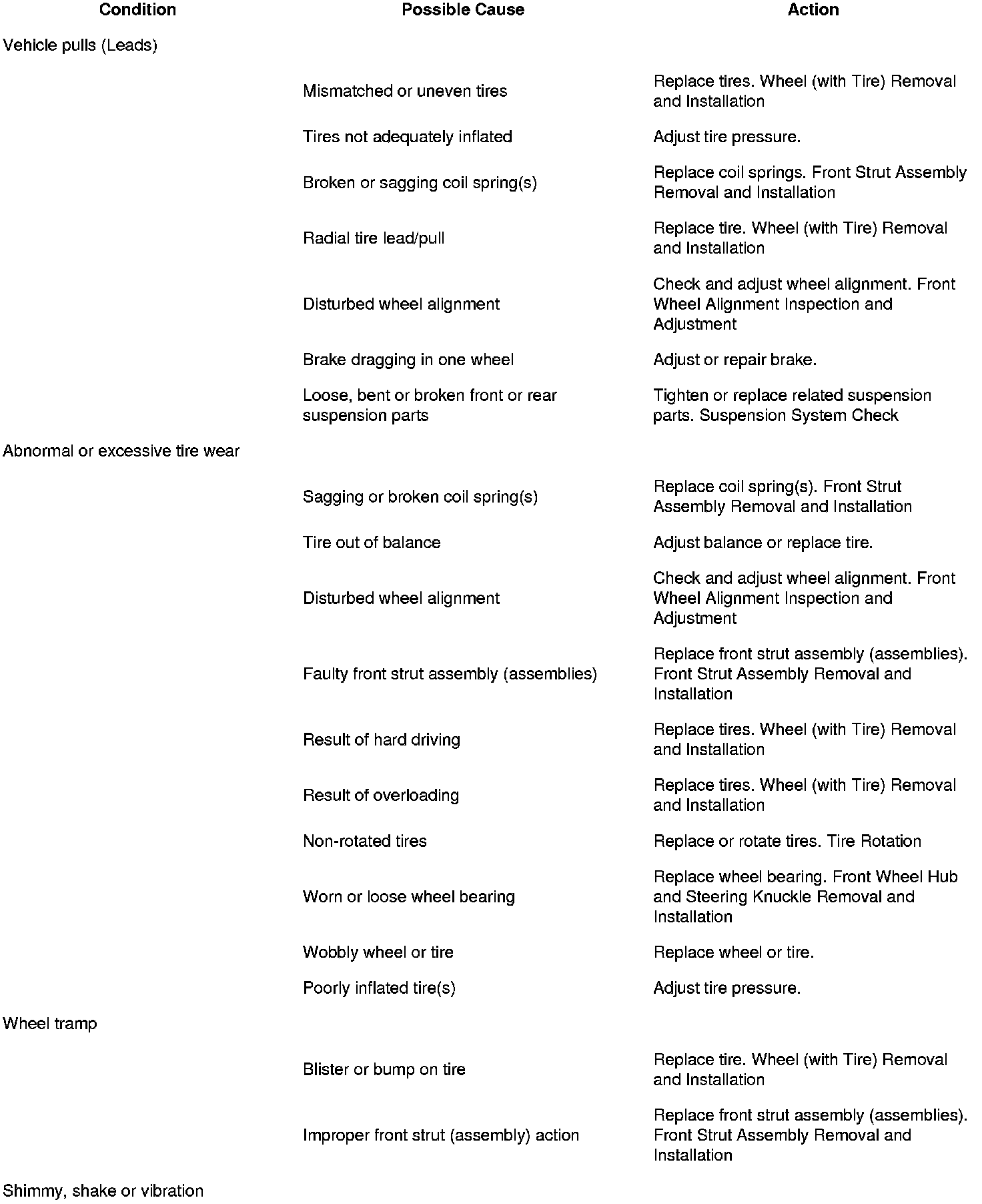

Suspension, Wheels and Tires Symptom Diagnosis
NOTE:
*1: Right-to-left trim height ("H") difference should be within 15 mm (0.6 in.) at curb weight. (This applies to both front and rear axles.)

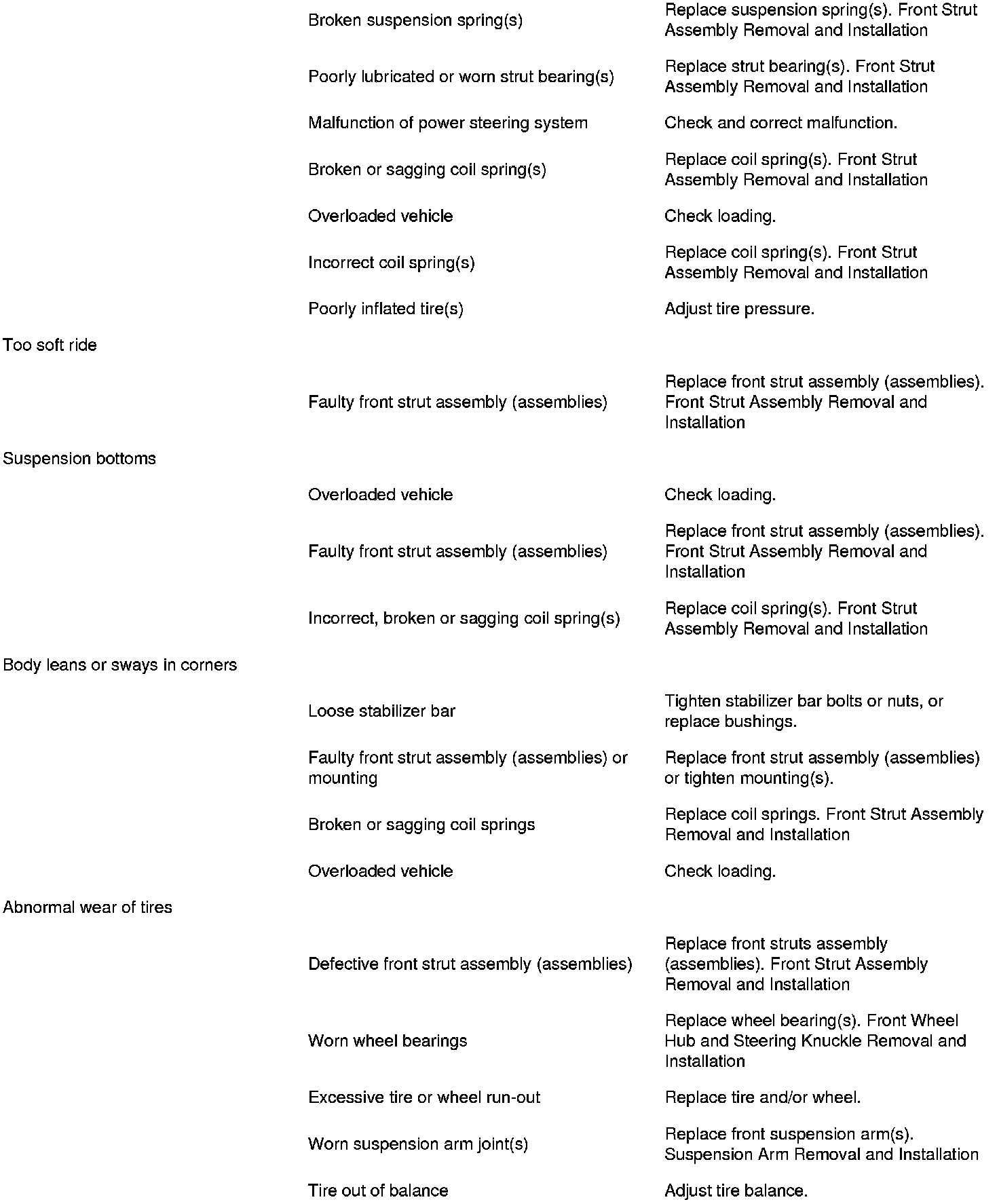

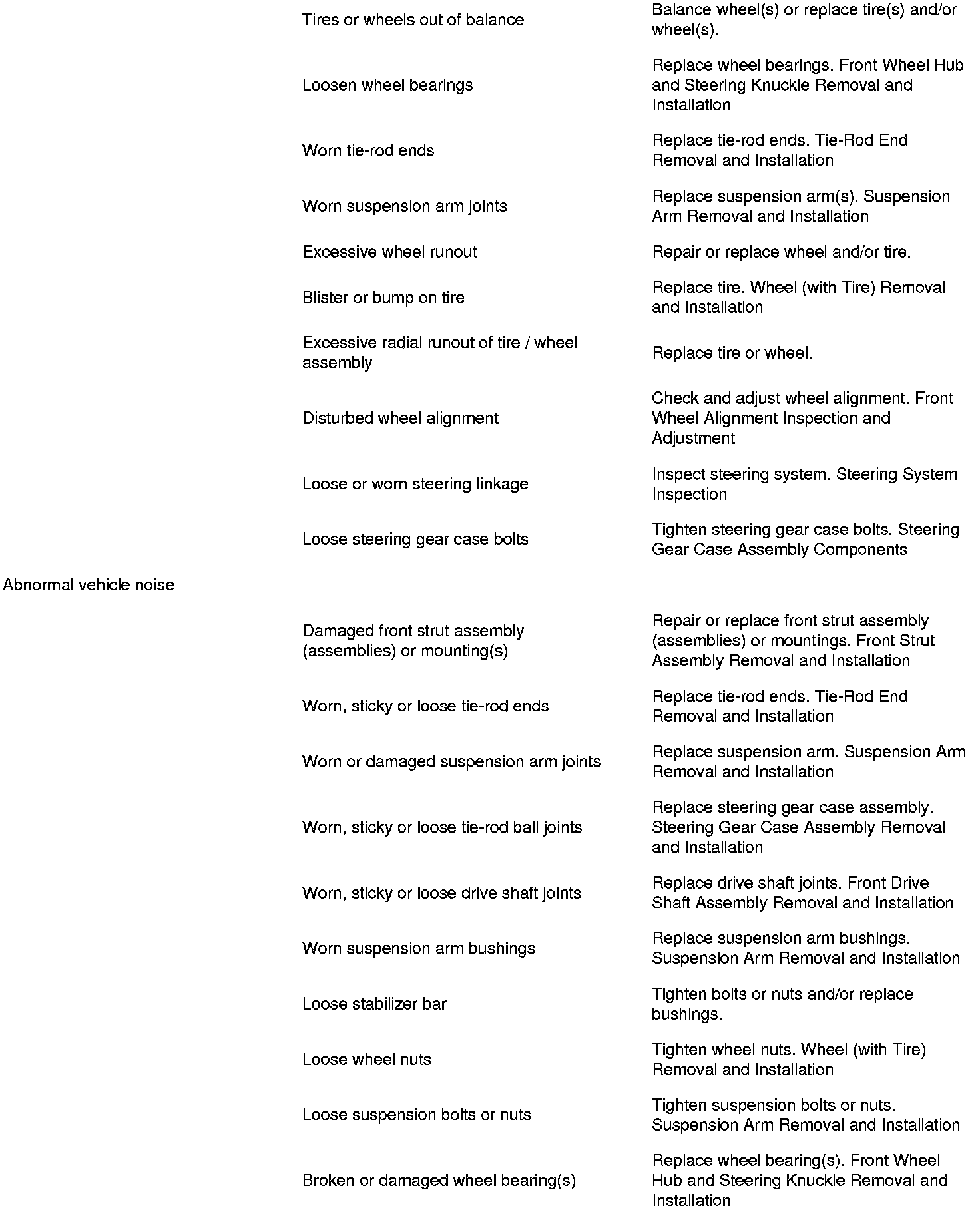

Suspension, Wheels and Tires Symptom Diagnosis
NOTE:
*1: Right-to-left trim height ("H") difference should be within 15 mm (0.6 in.) at curb weight. (This applies to both front and rear axles.)
