Torque & Sequence For The Pressure Plate

Tightening torque

Clutch cover bolt (a) 5.0 Nm -> 23 Nm (0.51 kgf-m -> 2.3 kgf-m, 4.0 lbf-ft -> 17.0 lbf-ft)
Clutch cover bolt (b) 23 Nm (2.3 kgf-m, 17.0 lbf-ft)






Note:

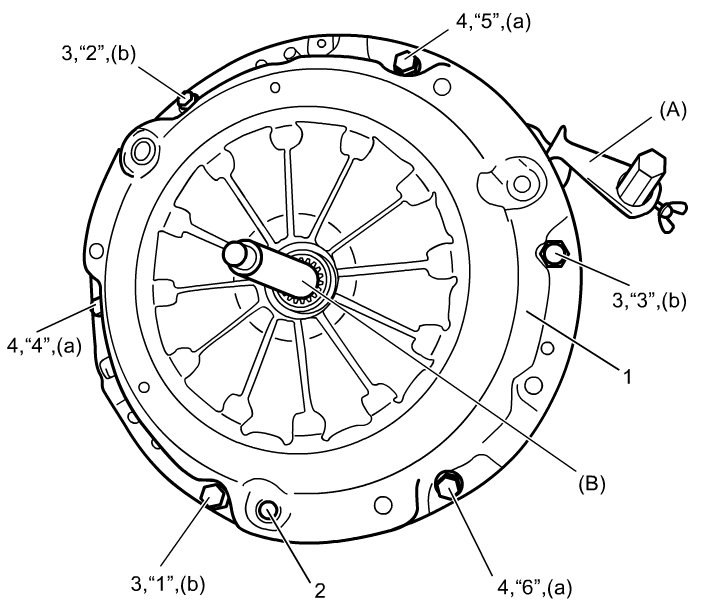

Install and tighten clutch cover bolts using the following procedures:
a) Tighten 3 bolts (3) by hand.
b) Tighten other 3 bolts (4) evenly and gradually to 5.0 Nm (0.51 kgf-m, 4.0 lbf-ft).
c) Fully tighten all bolts (3), (4) evenly and gradually to specified torque in numerical order ("1" - "6") starting from bolt nearby strut plate rivet (2).
