Brake Pad: Specifications

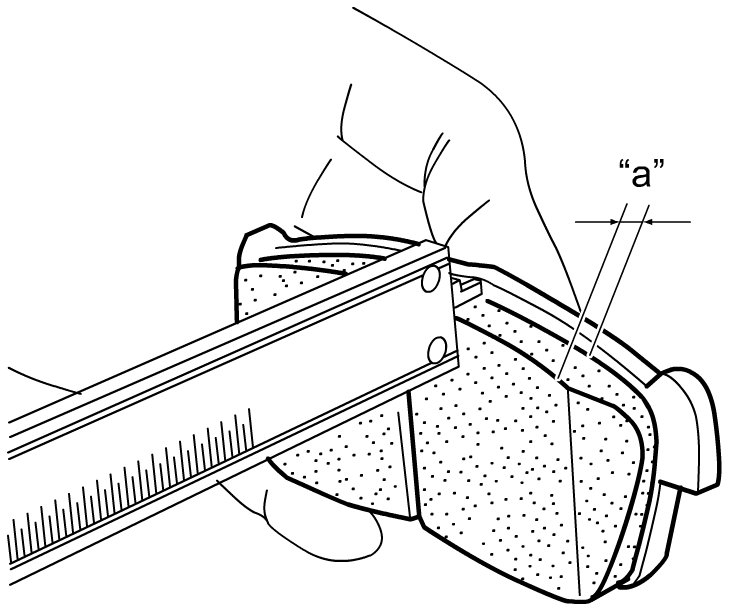

Front brake pad lining thickness
"a"
Standard (new) 11 mm (0.43 in.)
Limit 2 mm (0.08 in.)

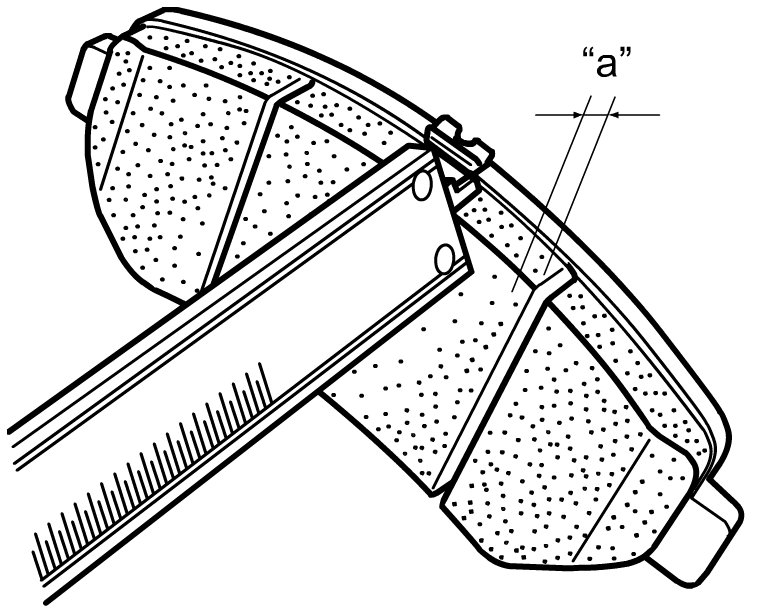

Rear brake pad lining thickness
"a"
Standard (new) 9 mm (0.35 in.)
Limit 1.5 mm (0.06 in.)
