Removal and Installation

Trunk Lid Opener Switch Removal and Installation

Trunk Lid Opener Switch On-Vehicle Inspection

Removal

1) Remove trunk lid inner handle and trunk lid trim. Service and Repair

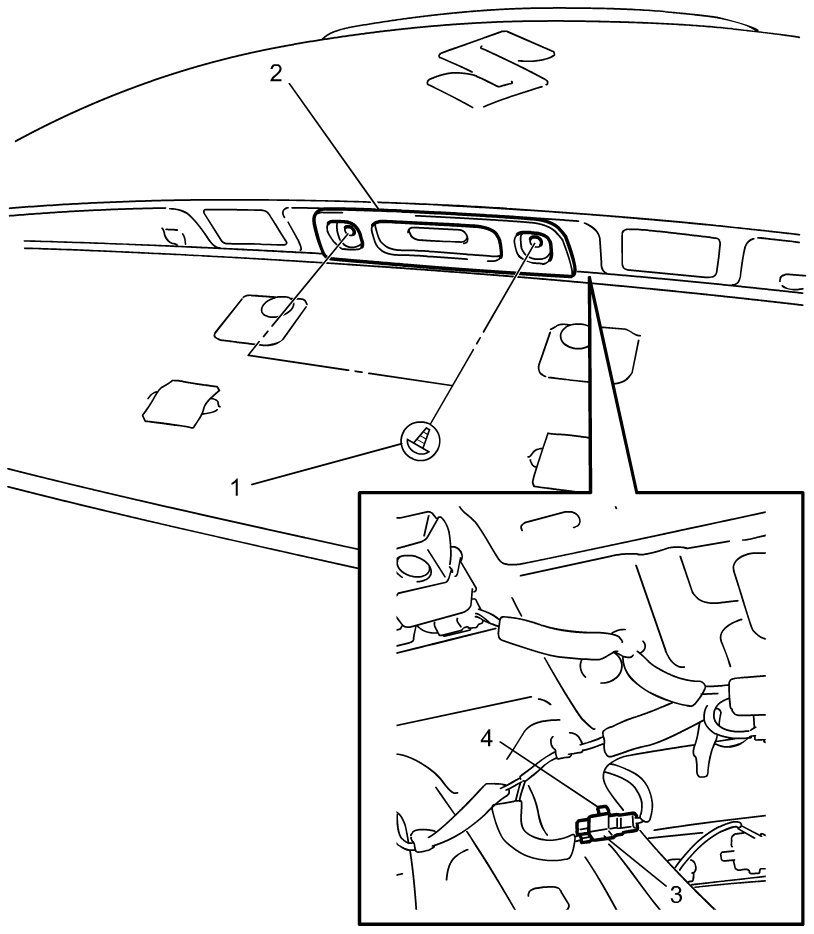

2) Disconnect trunk lid opener switch connector (3) and release connector clip (4).
3) Remove screws (1).
4) Release claws and remove trunk lid switch handle (2).

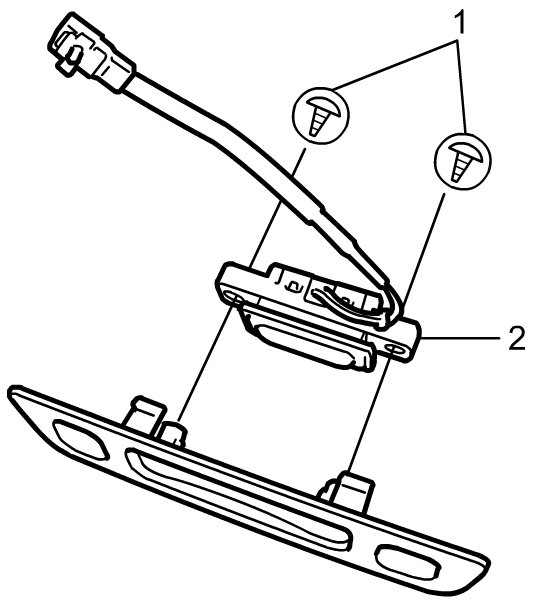

5) Remove screws (1) and remove trunk lid opener switch (2).






Installation

Reverse removal procedure.
