On-Vehicle Inspection

Trunk Lid Opener Switch On-Vehicle Inspection

1) Remove trunk lid inner handle and trunk lid trim. Service and Repair

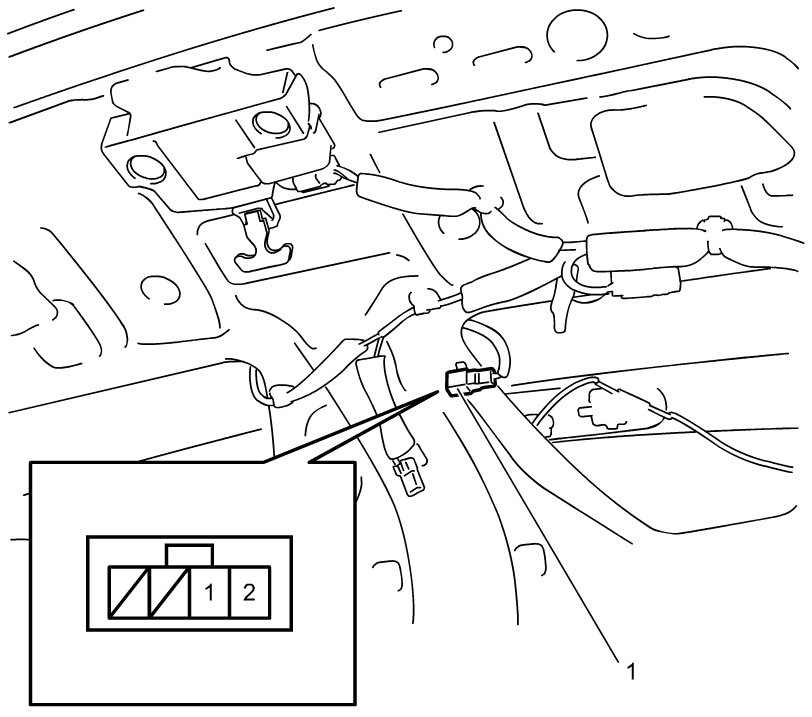

2) Disconnect trunk lid opener switch connector (1).
3) Check continuity between terminals at each switch position.

If check result is not as specified, replace switch.

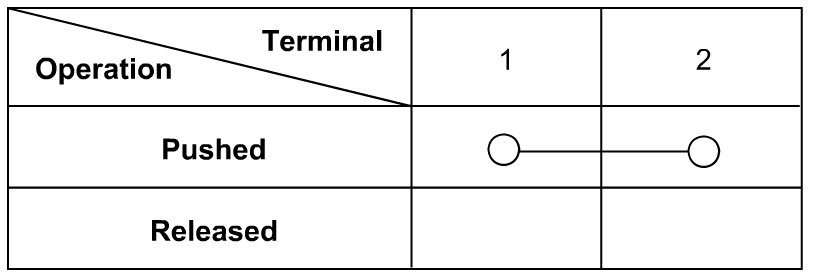

Trunk lid opener switch continuity
