Oil Pump Assembly Removal and Installation: Installation

Reference: OIL PUMP INSPECTION

  1. Make sure dowel pins (1) are installed.
    Fig 1: Identifying Dowel Pins
    G06493243Courtesy of SUZUKI OF AMERICA CORP.
  2. Align balancer shaft No. 1 (2) at specified position according to the following procedure.
    1. Insert special tool into aligning hole (1) in oil pump housing.
    2. Turn balancer shaft No. 1 (2) by hand and insert special tool into aligning hole (3) in balancer shaft.

      Special Tool

      (A): 09922-85811

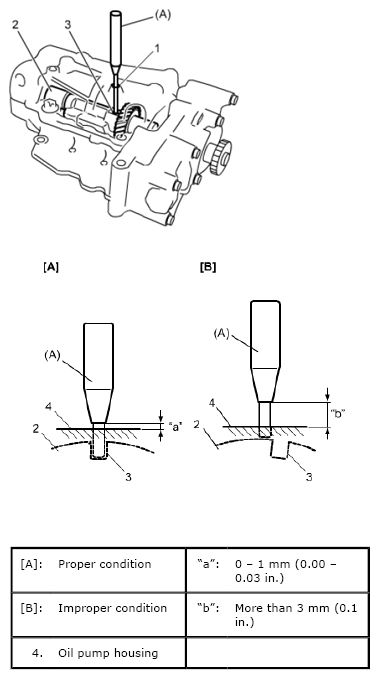

      Fig 2: Identifying Balancer Shafts
      G06493244Courtesy of SUZUKI OF AMERICA CORP.
  3. Rotate crankshaft so that it in positioned as follows.
    • Threaded holes line on crankshaft pulley (1) and lower crank case contact surface are set in parallel.
    • Connecting rod cap (3) in cylinder No. 1 is positioned close to exhaust manifold side (4).

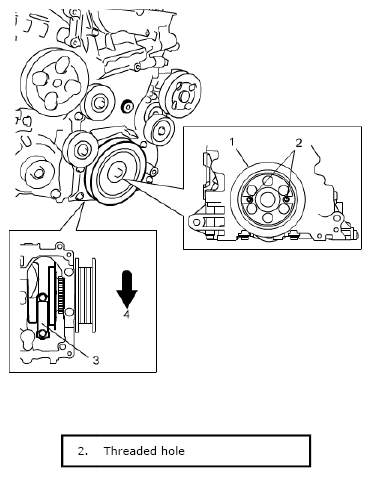

      Fig 3: Identifying Threaded Holes Line On Crankshaft Pulley
      G06493245Courtesy of SUZUKI OF AMERICA CORP.
  4. Install oil pump chain to oil pump sprocket, and then Install oil pump assembly to lower crank case.

    Tightening torque

    Oil pump bolt (M10) (a): 55 N.m (5.6 kg-m, 40.5 lbf-ft)

    Tightening torque

    Oil pump bolt (M8) (b): 25 N.m (2.5 kg-m, 18.5 lbf-ft)

    Fig 4: Identifying Oil Pump Bolt Location
    G06493246Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove retainer (3 mm wire) from oil pump chain adjuster.
  6. Remove special tool from oil pump housing and rotate crankshaft to be positioned as follows.
    • Threaded holes (2) on crankshaft pulley (1) and lower crank case contact surface are aligned parallel.
    • Connecting rod cap (3) in cylinder No. 1 is positioned close to exhaust manifold side (4).
  7. Insert special tool to aligning hole (1) on oil pump housing and make sure the position of aligning hole (3) on balancer shaft No. 1 (2) is proper.

    Special Tool

    (A): 09922-85811

    Fig 5: Aligning Hole On Oil Pump Housing
    G06493247Courtesy of SUZUKI OF AMERICA CORP.
    Fig 6: Identifying Oil Pump Housing Condition
    G06493248Courtesy of SUZUKI OF AMERICA CORP.
  8. Remove special tool from oil pump assembly, and then install oil pump sprocket cover (1).

    Tightening torque

    Oil pump sprocket cover bolt (a): 11 N.m (1.1 kg-m, 8.5 lbf-ft)

    Fig 7: Identifying Oil Pump Sprocket Cover Bolt
    G06493249Courtesy of SUZUKI OF AMERICA CORP.
  9. Install oil pan, oil strainer and oil pan baffle plate. See OIL PAN AND OIL PUMP STRAINER REMOVAL AND INSTALLATION .
