Past Error - Short Circuit -
WARNING: This page is about a different car, the 2011 Suzuki Equator. However, it is still accessible from the selected car via links, so may be relevant.
When the symptoms listed below exist, a short circuit of the CAN communication line is a possible cause.

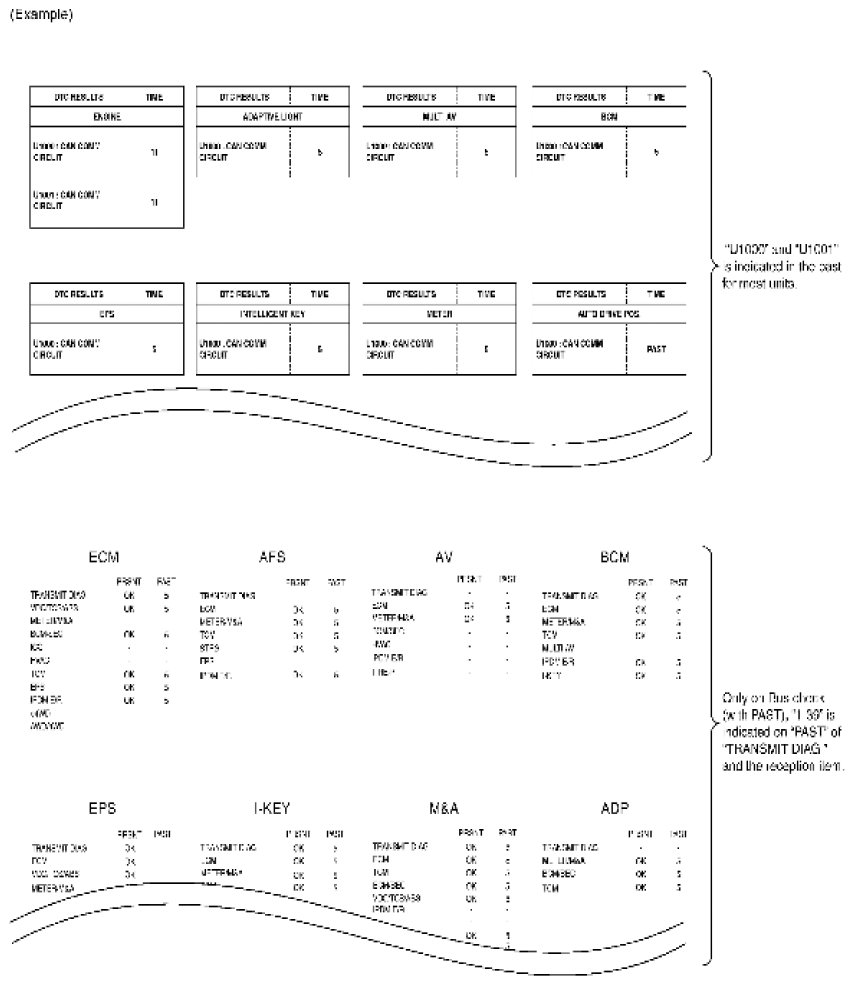

INSPECTION PROCEDURE CHART
| Item (SDT) | Indication | Inspection procedure |
|---|---|---|
| DTC check | "U1000" and "U1001" is indicated in the past for most units. | Refer to "MALFUNCTION AREA CHART ". |
| Bus check | Only on bus check (with PAST), "1 - 39" is indicated on "PAST" of "TRANSMIT DIAG" and the reception item. |
