ECM Power and Ground Circuit Check: Wiring Diagram

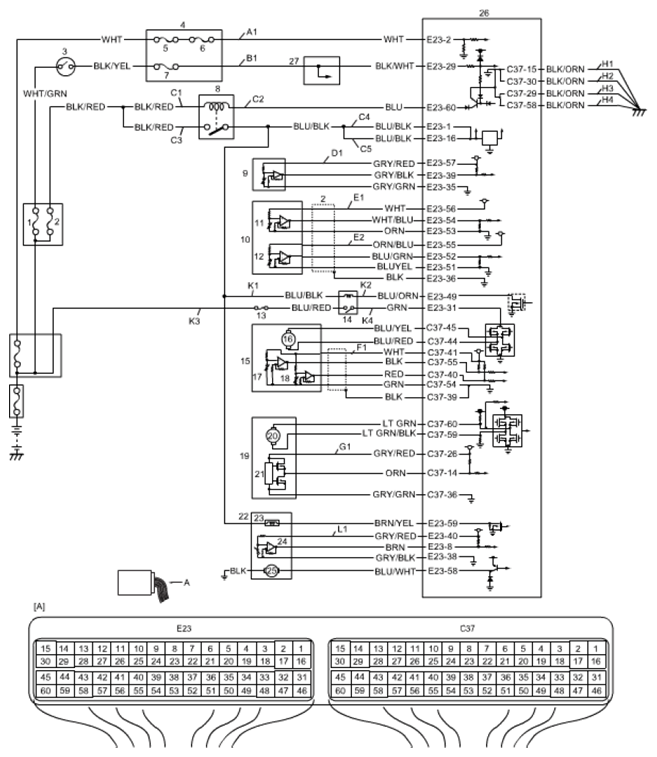

Fig 1: ECM Power And Ground - Wiring Diagram

Courtesy of SUZUKI OF AMERICA CORP.

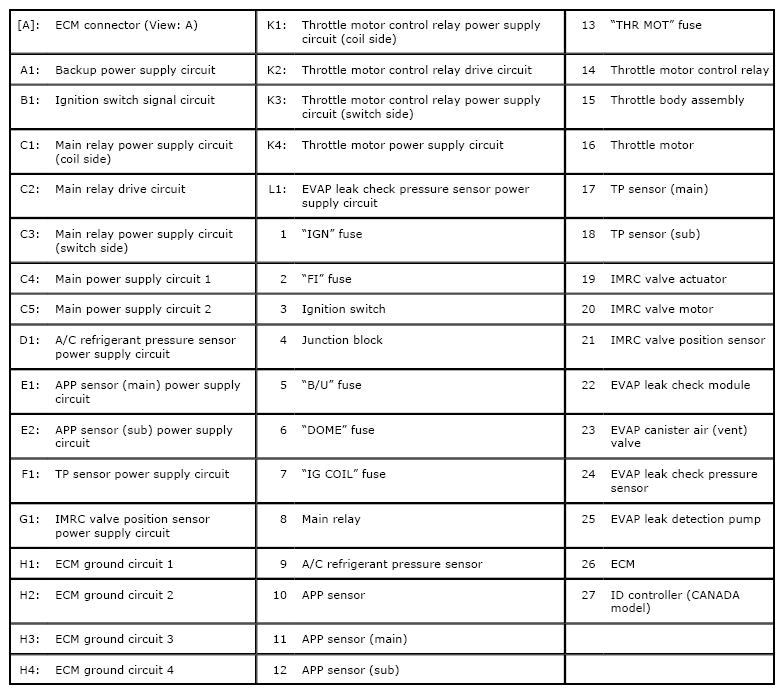

Fig 2: ECM Power And Ground - Wiring Diagram Legends

Courtesy of SUZUKI OF AMERICA CORP.
