DTC P0420: Catalyst System Efficiency Below Threshold: Wiring Diagram

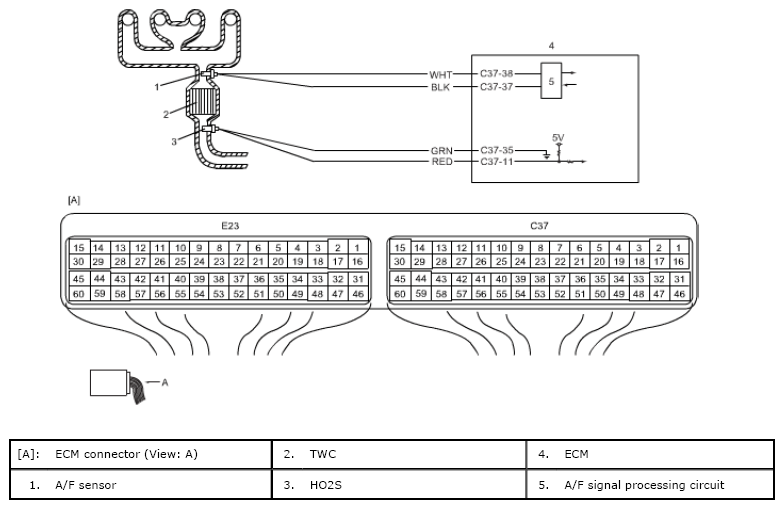

Fig 1: Catalyst System - Wiring Diagram
G06492359Courtesy of SUZUKI OF AMERICA CORP.
