Manual Transmission Assembly Components

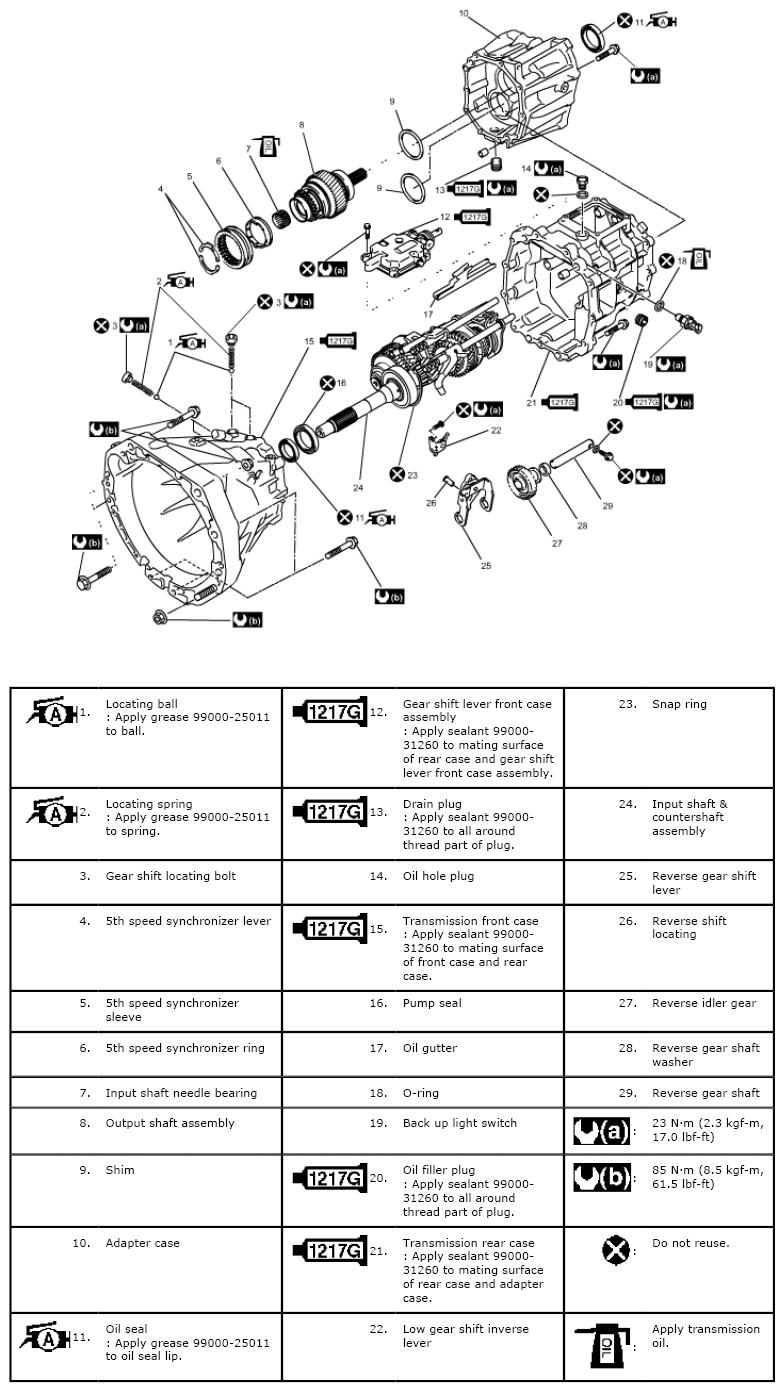

Fig 1: Exploded View Of Manual Transmission Assembly With Torque Specifications
G06499071Courtesy of SUZUKI OF AMERICA CORP.
