Input Shaft Assembly, Output Shaft Assembly and Countershaft Assembly Components

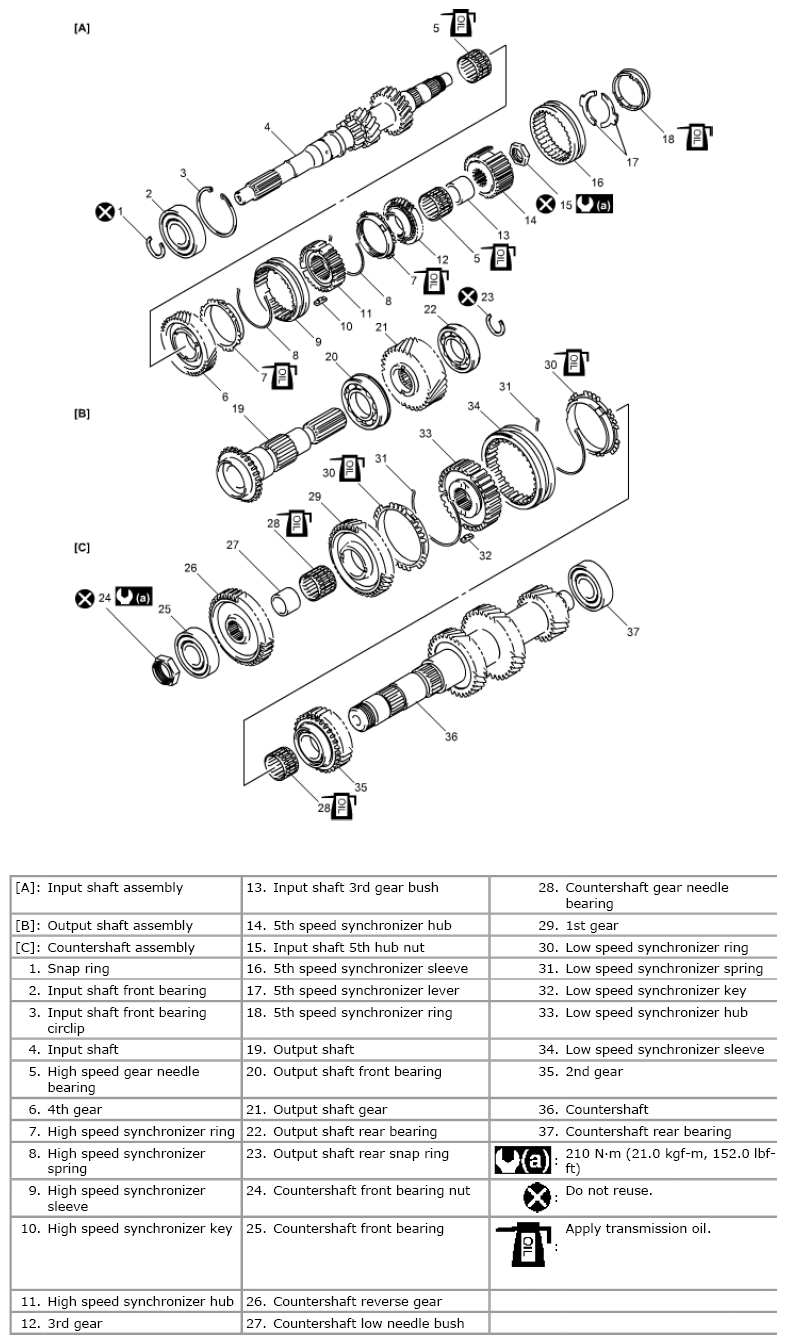

Fig 1: Exploded View Of Input Shaft Assembly, Output Shaft Assembly And Countershaft Assembly With Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.
