Gear Shift Lever Front Case Assembly Components

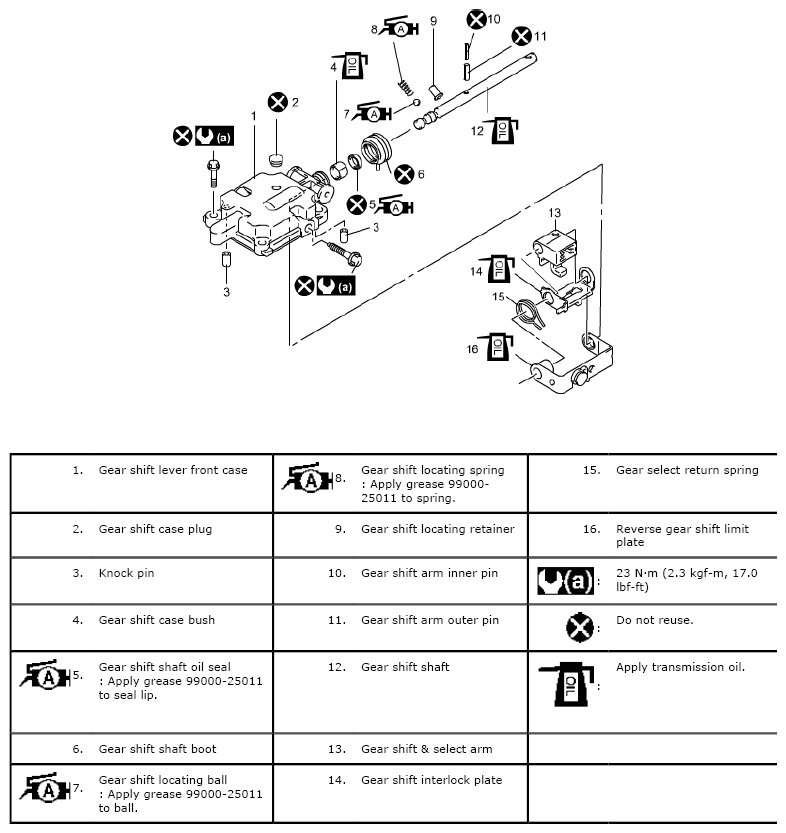

Fig 1: Exploded View Of Gear Shift Lever Front Case Assembly With Torque Specifications
G06499073Courtesy of SUZUKI OF AMERICA CORP.
