Extension Case Assembly Components

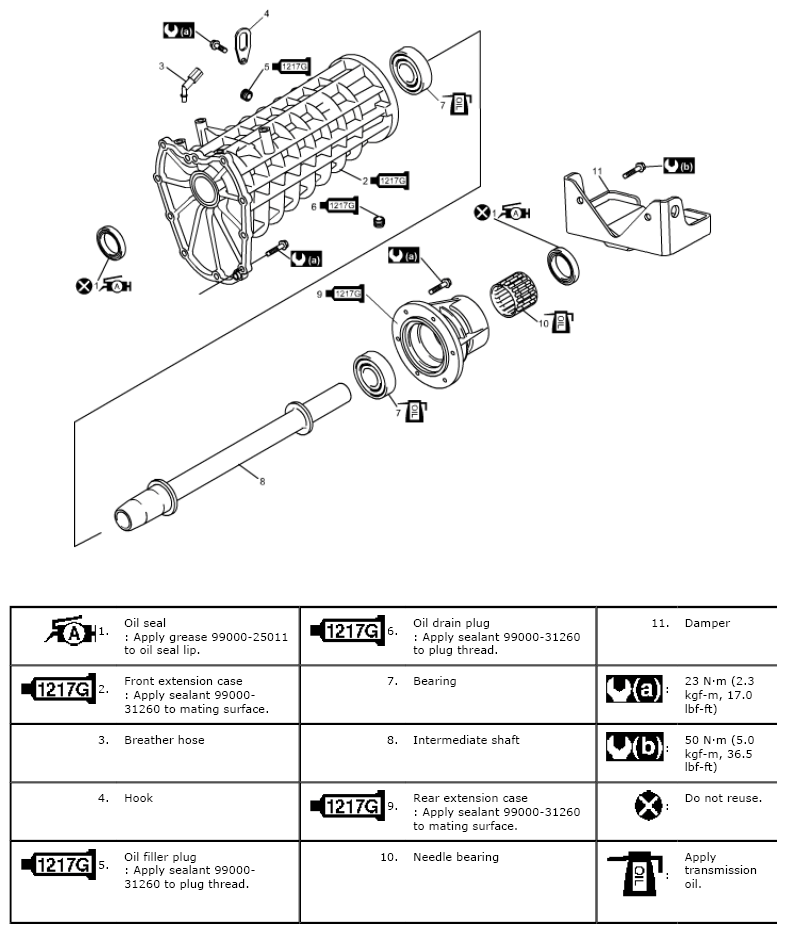

Fig 1: Extension Case Assembly Replacement Components With Torque Specifications
G06499162Courtesy of SUZUKI OF AMERICA CORP.
