Clutch Pedal Position (CPP) Switch (For 4WD Control Module) Removal and Installation: Removal

Disconnect connector of clutch pedal position (CPP) switch (for 4WD control module) (1) with ignition switch OFF.
Remove clutch pedal position (CPP) switch (for 4WD control module) (1) from pedal bracket.

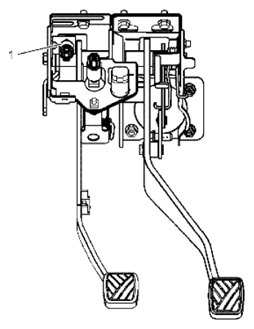

Fig 1: Identifying Clutch Pedal Position (CPP) Switch (For 4WD Control Module)
Courtesy of SUZUKI OF AMERICA CORP.
