Clutch Cover, Clutch Disc and Flywheel Components

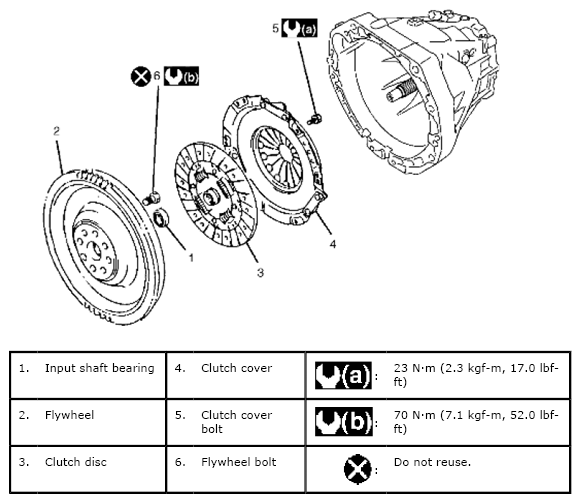

Fig 1: Clutch Cover, Clutch Disc And Flywheel Replacement Components With Torque Specifications
G06499208Courtesy of SUZUKI OF AMERICA CORP.
