Rear Shock Absorber and Rear Coil Spring Components

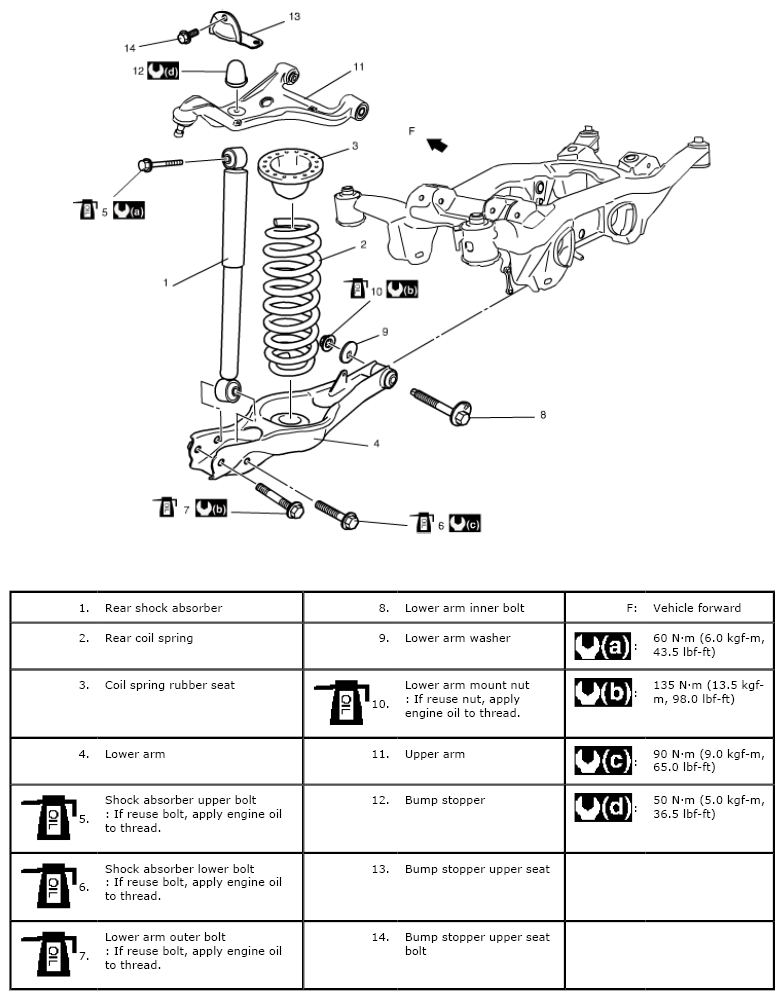

Fig 1: Rear Shock Absorber And Rear Coil Spring Replacement Components With Torque Specifications
G06493689Courtesy of SUZUKI OF AMERICA CORP.
