Lower Arm Removal and Installation: Notes

Hoist vehicle and remove rear wheels.
For headlight auto leveling model, remove rear height sensor. See HEIGHT SENSOR REMOVAL AND INSTALLATION (IF EQUIPPED) .

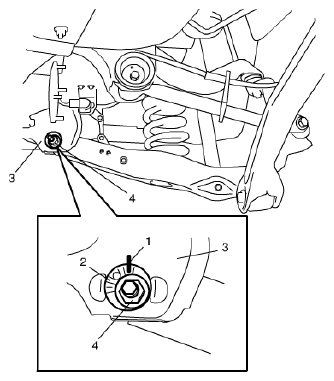

Put match marks (1) on lower arm washer (2) and on suspension frame (3) to install the bolts specified in position.
Loosen lower arm mount nut (4).

Fig 1: Identifying Match Marks On Lower Arm Washer
Courtesy of SUZUKI OF AMERICA CORP.
Remove rear coil spring referring to REAR COIL SPRING AND BUMP STOPPER REMOVAL AND INSTALLATION .
Remove suspension rod mount bolt (1) and then lower arm (2).

Fig 2: Identifying Suspension Rod Mount Bolt And Lower Arm
Courtesy of SUZUKI OF AMERICA CORP.
