Suspension Control Arm Removal and Installation: Removal

Hoist vehicle and remove wheel.
Uncaulk drive shaft nut (1).
Depress foot brake pedal and hold it. Remove drive shaft nut (1).

Fig 1: Identifying Drive Shaft Nut
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect tie-rod end from steering knuckle, see TIE-ROD END REMOVAL AND INSTALLATION .
For headlight auto leveling model, remove front height sensor, see HEIGHT SENSOR REMOVAL AND INSTALLATION (IF EQUIPPED) .
Loosen ball joint nut (1).

Fig 2: Identifying Ball Joint Nut
Courtesy of SUZUKI OF AMERICA CORP.
Remove suspension control arm bolts (1).

Fig 3: Identifying Suspension Control Arm Bolts
Courtesy of SUZUKI OF AMERICA CORP.

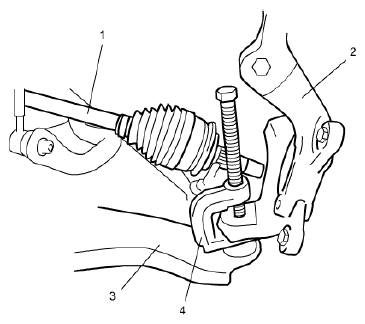

Disconnect drive shaft (1) from steering knuckle (2).
Remove steering knuckle (2) from control arm (3) using puller (4) and then remove control arm (3).

Fig 4: Identifying Drive Shaft And Steering Knuckle
