Steering Knuckle Removal and Installation: Removal

  1. Hoist vehicle and remove front wheel.
  2. Remove front wheel hub assembly, see FRONT WHEEL HUB ASSEMBLY REMOVAL AND INSTALLATION .
  3. Disconnect tie-rod end from steering knuckle, see TIE-ROD END REMOVAL AND INSTALLATION .
  4. Remove front wheel speed sensor (1) from knuckle.
  5. Loosen ball joint nut (2).
    Fig 1: Identifying Ball Joint Nut
    G06493628Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove strut bracket bolts (2) and nuts (1).
    Fig 2: Identifying Strut Bracket Bolts And Nuts
    G06493629Courtesy of SUZUKI OF AMERICA CORP.
  7. Disconnect drive shaft (1) from steering knuckle (2).
  8. Remove steering knuckle (2) from control arm (3) using puller (4).

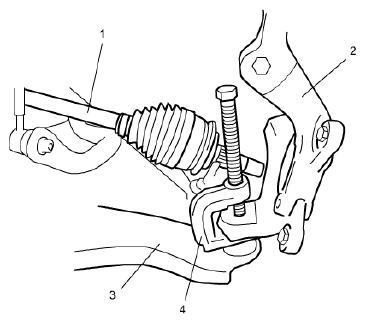

    Fig 3: Identifying Steering Knuckle And Control Arm
    G06493630Courtesy of SUZUKI OF AMERICA CORP.
