Rear Seat Belt Components

WARNING: Failure to take proper precautions when servicing seat belt components may result in personal injury.
Be sure to read PRECAUTIONS ON SERVICE AND DIAGNOSIS OF SEAT BELT  before starting to work and observe every precaution during work.

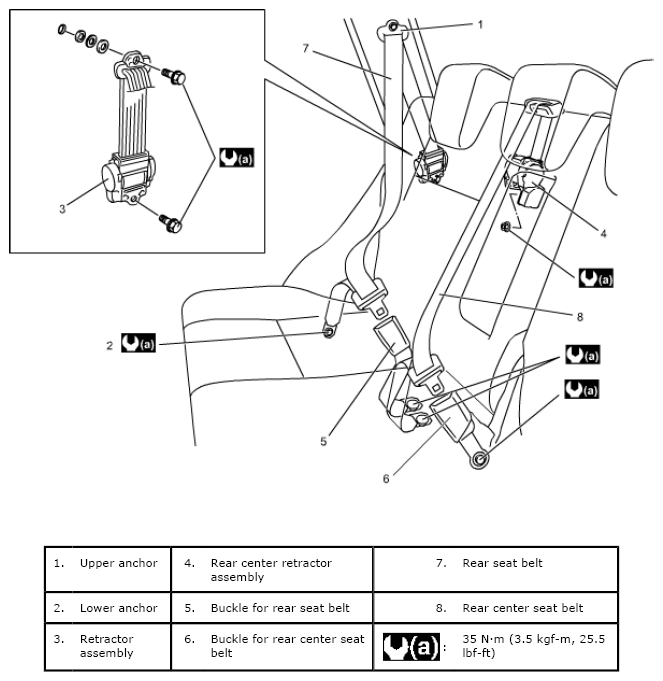

Fig 1: Rear Seat Belt Replacement Components With Torque Specifications
G06500433Courtesy of SUZUKI OF AMERICA CORP.
